EXCEPTIONAL AIRFLOW
V217 features a high-performance mesh front panel that maximizes airflow, delivering superior cooling efficiency for your system. This enhanced ventilation design ensures optimal thermal management, safeguarding your components during demanding workloads and extending their lifespan.

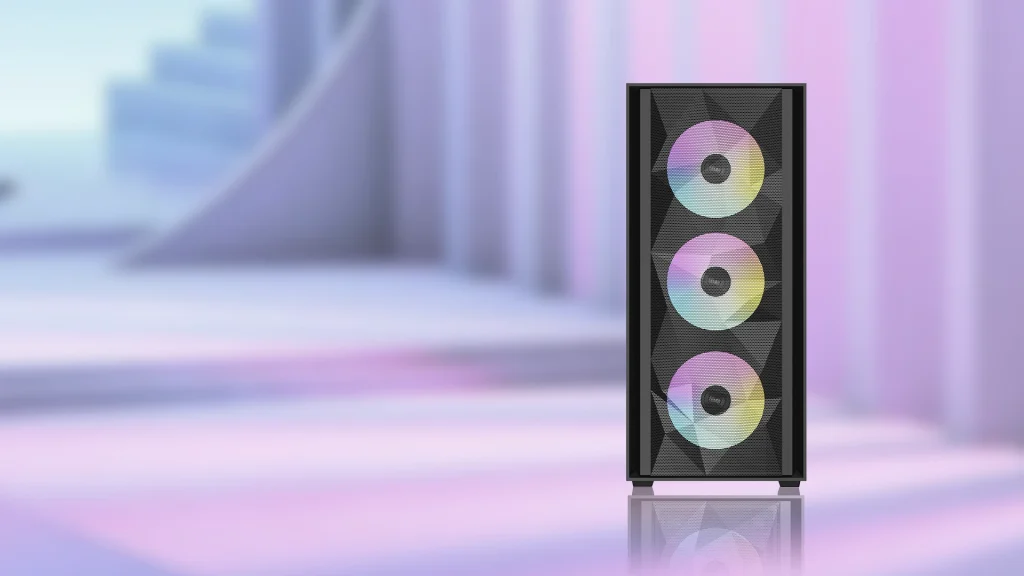

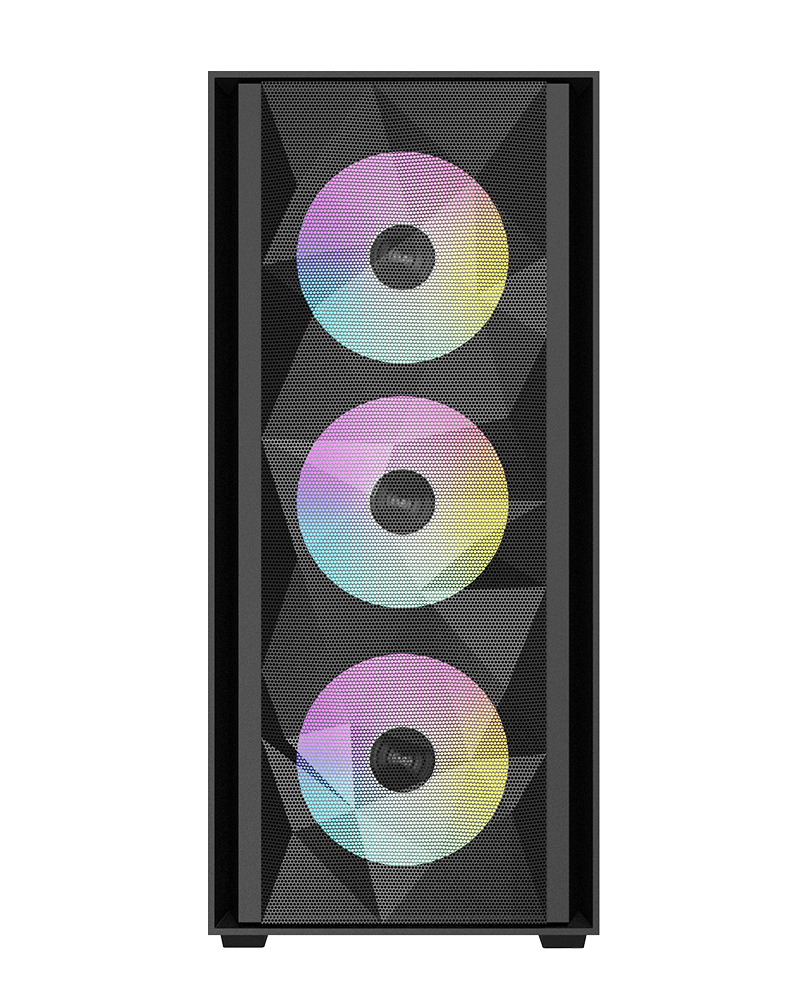

IMMERSE YOURSELF IN THE GLOW
Elevate your gaming setup with 4 pre-installed 120mm lighting fans, delivering stunning ARGB effects. Positioned at the front and rear, these fans create an immersive, eye-catching illumination that transforms your PC into a dynamic visual masterpiece.

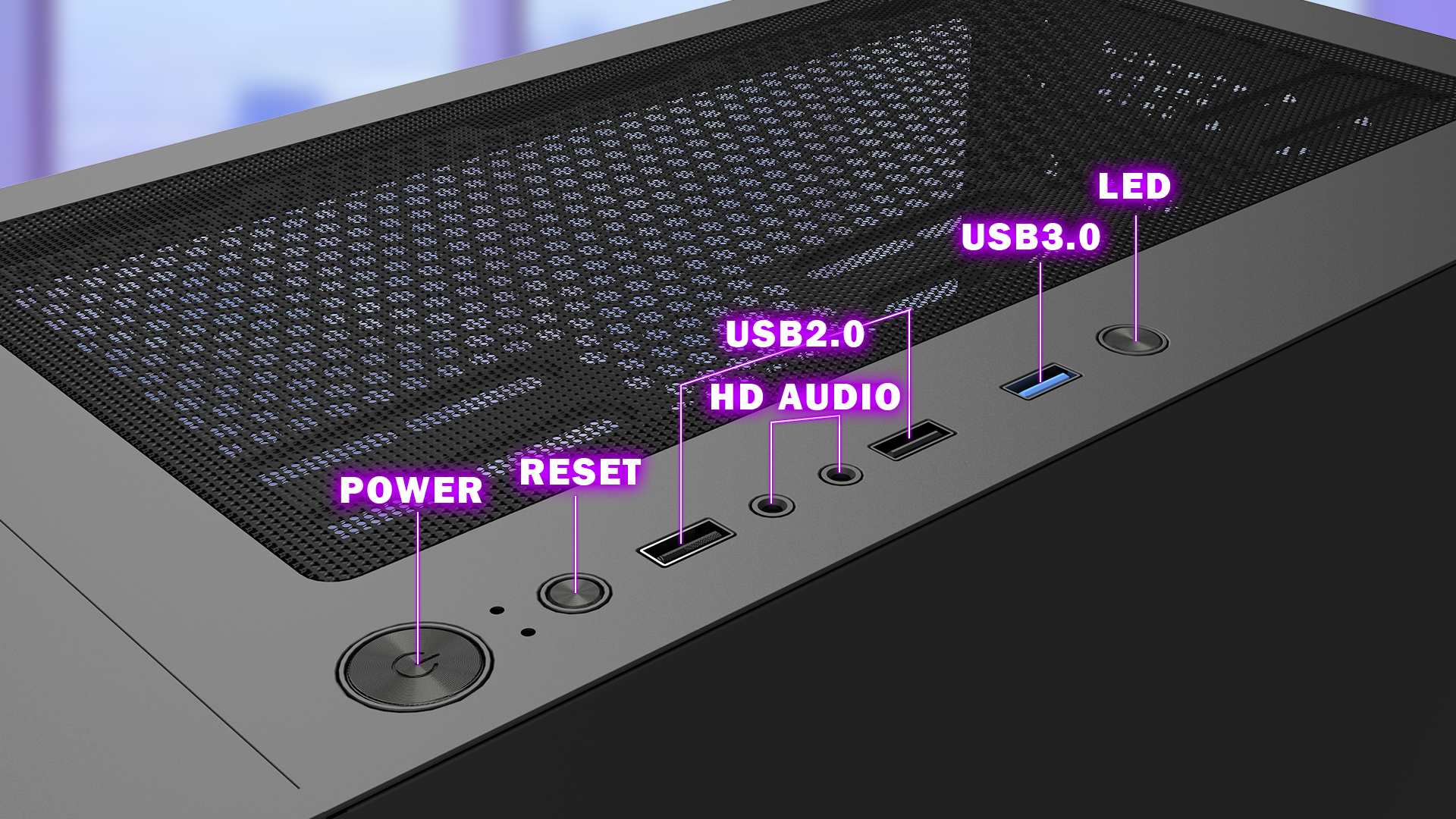

I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES

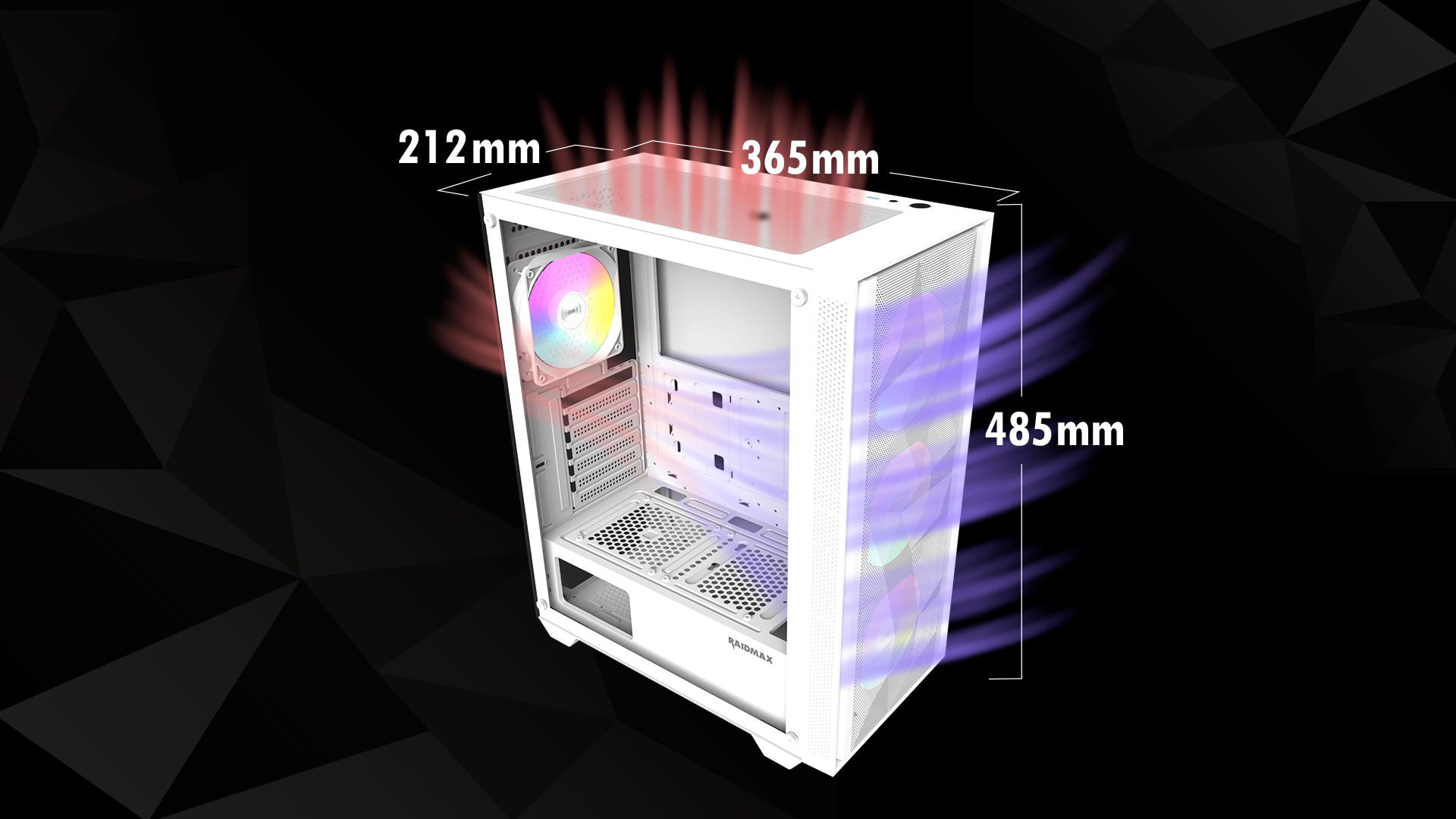

AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | V217 |
| PRODUCT NO. | V217TBF Black / V217TWF White |
| DIMENSIONS (mm) | 365(L) x 212(W) x 485(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | USB3.0 x 1, USD2.0 x 2, HD Audio, Power, Reset, LED |
| FAN SUPPORT | Front:120mm x 3 / 140mm x 3 , Top:120mm x 2 / 140mm x 2 , Rear:120mm x 1 , PSU Chamber:120mm x 2 |
| PREINSTALLED FAN (s) | ARGB LED Fan 120mm x 3 (front) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR SUPPORT | Front:280/360mm , Top:280mm , Rear: 120mm |
| MAX. GPU LENGTH | 300mm |
| MAX.CPU COOLER HEIGHT | 165mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Bottom Mounted ) |
EXCEPTIONAL AIRFLOW
V217 features a high-performance mesh front panel that maximizes airflow, delivering superior cooling efficiency for your system. This enhanced ventilation design ensures optimal thermal management, safeguarding your components during demanding workloads and extending their lifespan.
IMMERSE YOURSELF IN A VIBRANT GLOW
Elevate your gaming setup with 4 pre-installed 120mm lighting fans, delivering stunning ARGB effects. Positioned at the front and rear, these fans create an immersive, eye-catching illumination that transforms your PC into a dynamic visual masterpiece.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | V217 |
| PRODUCT NO. | V217TBS |
| DIMENSIONS (mm) | 365(L) x 212(W) x 485(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | USB3.0 x 1, USD2.0 x 2, HD Audio, Power, Reset, LED |
| FAN SUPPORT | Front:120mm x 3 / 140mm x 3 , Top:120mm x 2 / 140mm x 2 , Rear:120mm x 1 , PSU Chamber:120mm x 2 |
| PREINSTALLED FAN (s) | Static RGB LED Fan 120mm x 3 (front) / Static RGB LED Fan 120mm x 1 (rear) |
| RADIATOR SUPPORT | Front:280/360mm , Top:280mm , Rear: 120mm |
| MAX. GPU LENGTH | 300mm |
| MAX.CPU COOLER HEIGHT | 165mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Bottom Mounted ) |
