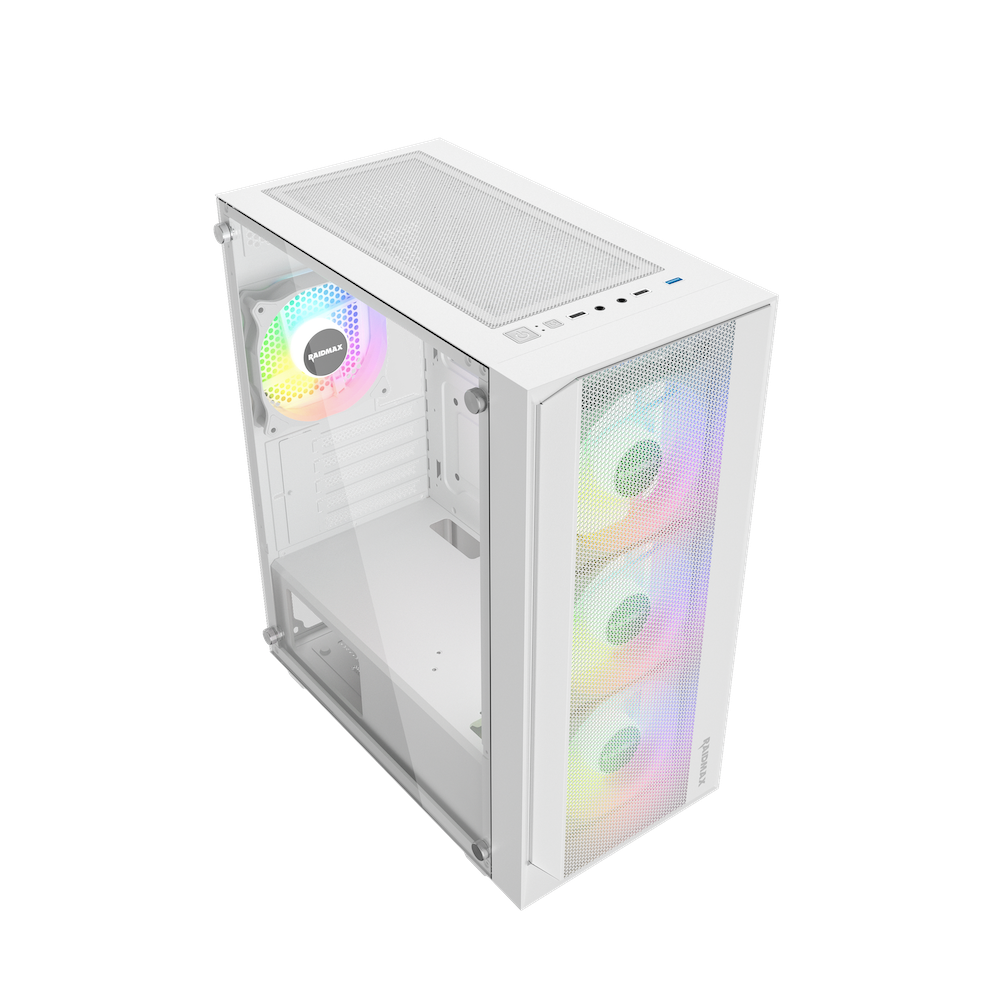

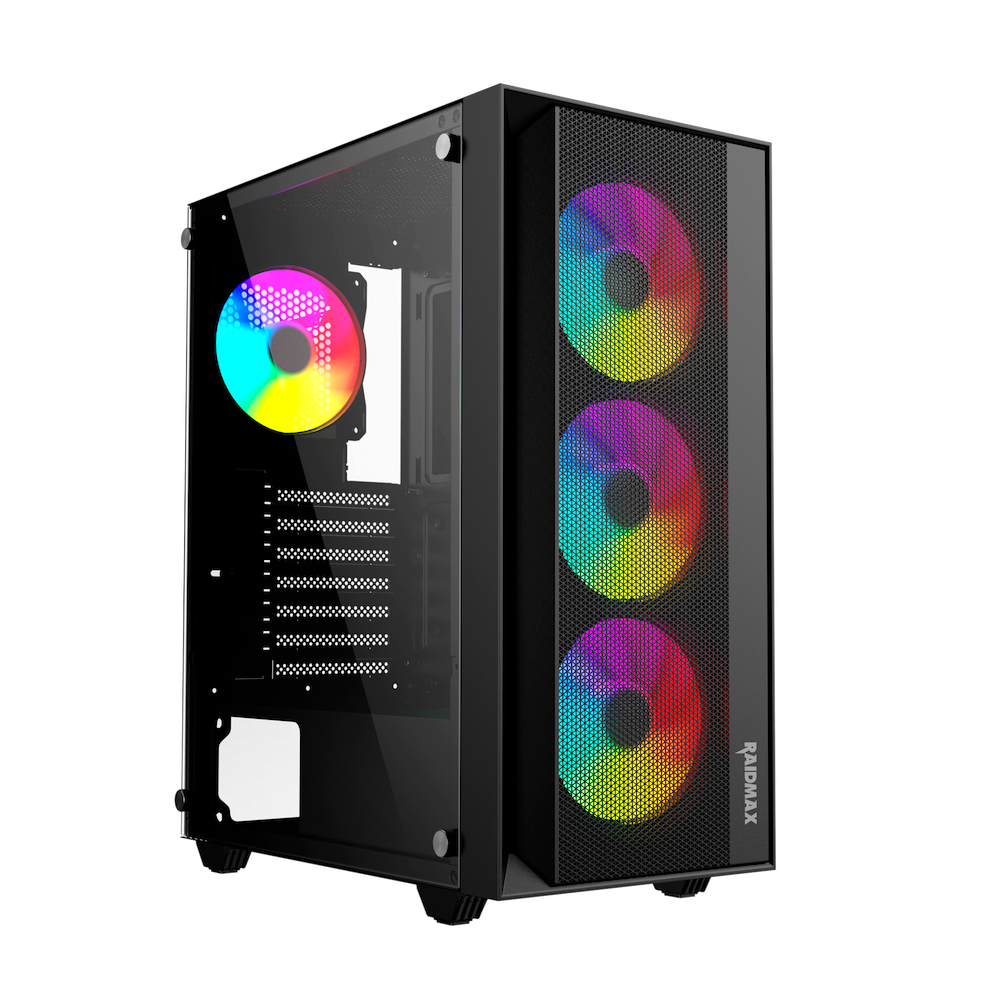

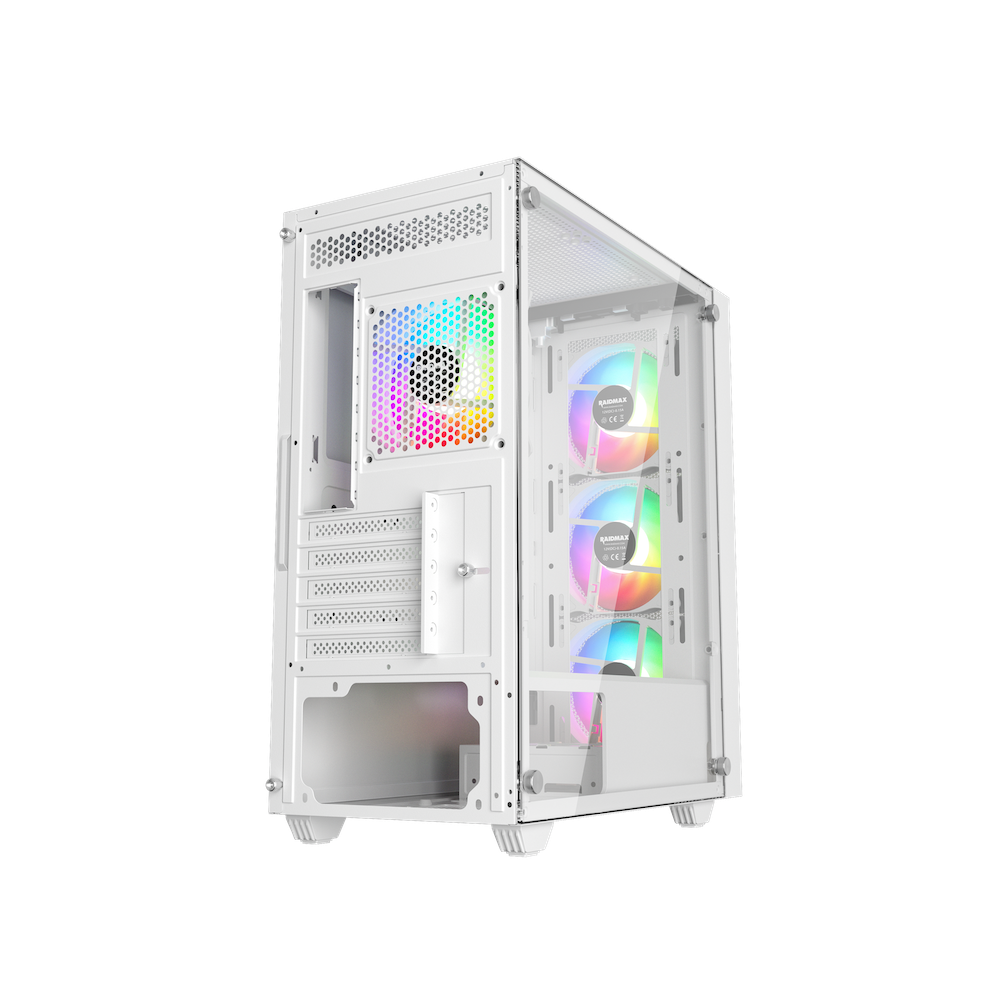

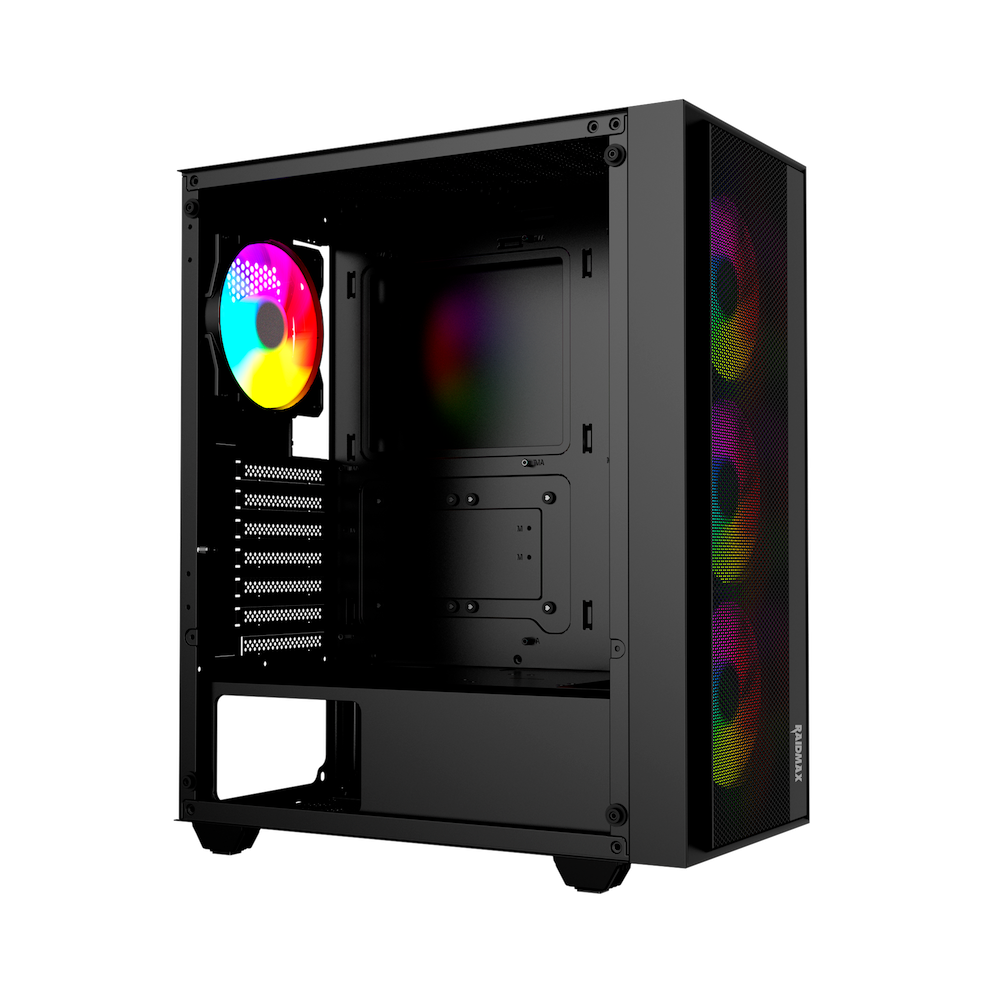

FEATURING A SLEEK AND MODERN MESH DESIGN
V100 gaming case offers optional air flow capabilities, providing both aesthetic appeal and practical functionality for the discerning gamer.
FEATURING A SLEEK AND MODERN MESH DESIGN
V100 gaming case offers optional air flow capabilities, providing both aesthetic appeal and practical functionality for the discerning gamer.
FACILITATING HASSLE-FREE MAINTENANCE
V100 is fitted with a magnetic dust filter on the top panel, ensuring the internal components remain clean and free from dust accumulation
4MM PREMIUM TEMPERED GLASS
Providing a clear and unobstructed view of your internal components, while adding a touch of elegance and sophistication to your gaming setup
FACILITATING HASSLE-FREE MAINTENANCE
V100 is fitted with a magnetic dust filter on the top panel, ensuring the internal components remain clean and free from dust accumulation
4MM PREMIUM
TEMPERED GLASS
Providing a clear and unobstructed view of your internal components, while adding a touch of elegance and sophistication to your gaming setup
I/O PORT
01 Power
02 Reset
03 HD AUDIO
04 USB2.0
05 USB3.0
I/O PORT
01 Power
02 Reset
03 HD AUDIO
04 USB2.0
05 USB3.0
COOLING SYSTEM
Front Fan : 120mm x 3 / 140mm x 2 (Up to 280mm Radiator )
Top Fan : 120mm x 2 / 140mm x 2
Rear Fan : 120mm x 1 (Up to 120mm Radiator )
COOLING SYSTEM
Front Fan : 120mm x 3 / 140mm x 2 (Up to 280mm Radiator )
Top Fan : 120mm x 2 / 140mm x 2
Rear Fan : 120mm x 1 (Up to 120mm Radiator )
COMPATIBILITY & CLEARANCES
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | V100 VECTOR |
| Product NO. | V100 |
| DIMENSIONS | 365mm (L) x 200mm (W) x 448mm (H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 2 / 1 |
| I/O Ports | USB3.0 x 1, USB2.0 x 2, HD Audio, Power, Reset |
| Front Fan | 120mm x 3 / 140mm x 2 |
| Top Fan | 120mm x 2 / 140mm x 2 |
| Rear Fan | 120mm x 1 |
| Included Accessory | Static RGB Fan (120mm x 3 in front, 120mm x 1 in rear) |
| Front Radiator | 120mm / 140mm / 240mm / 280mm |
| Max. Video Card (L) | ≦ 320mm |
| Max. CPU Cooler (H) | ≦ 160mm |
| Side Panel | Tempered Glass |
| PSU Support | Standard PS2 / ATX PSU (Bottom Mounted) |
