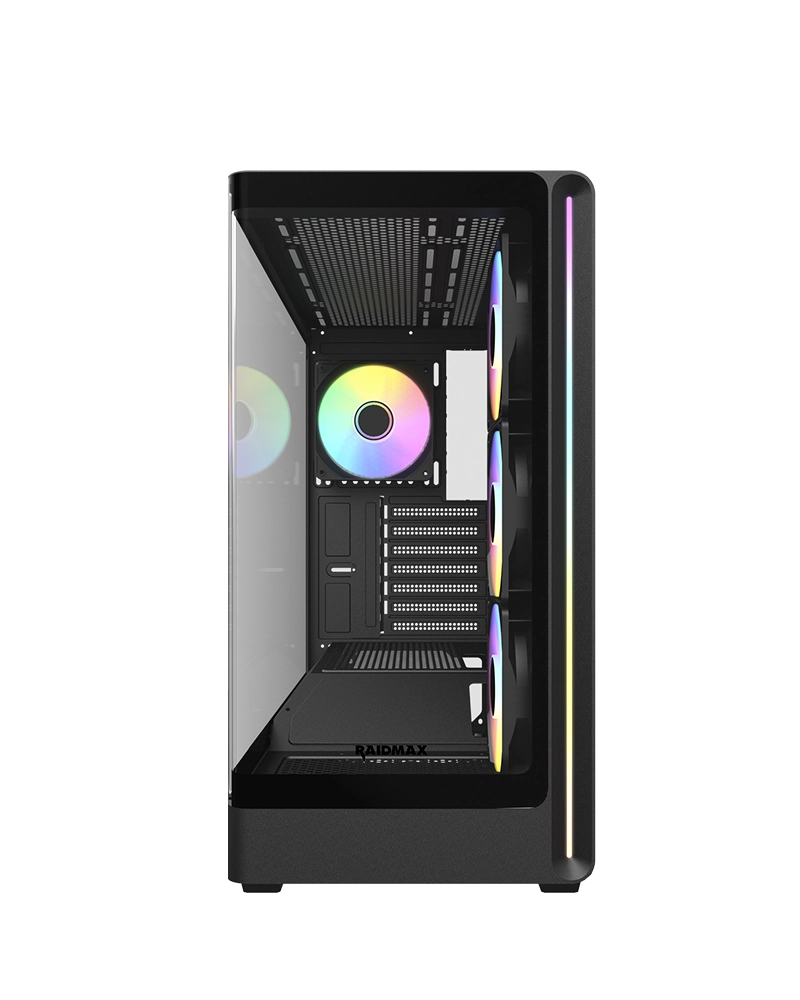

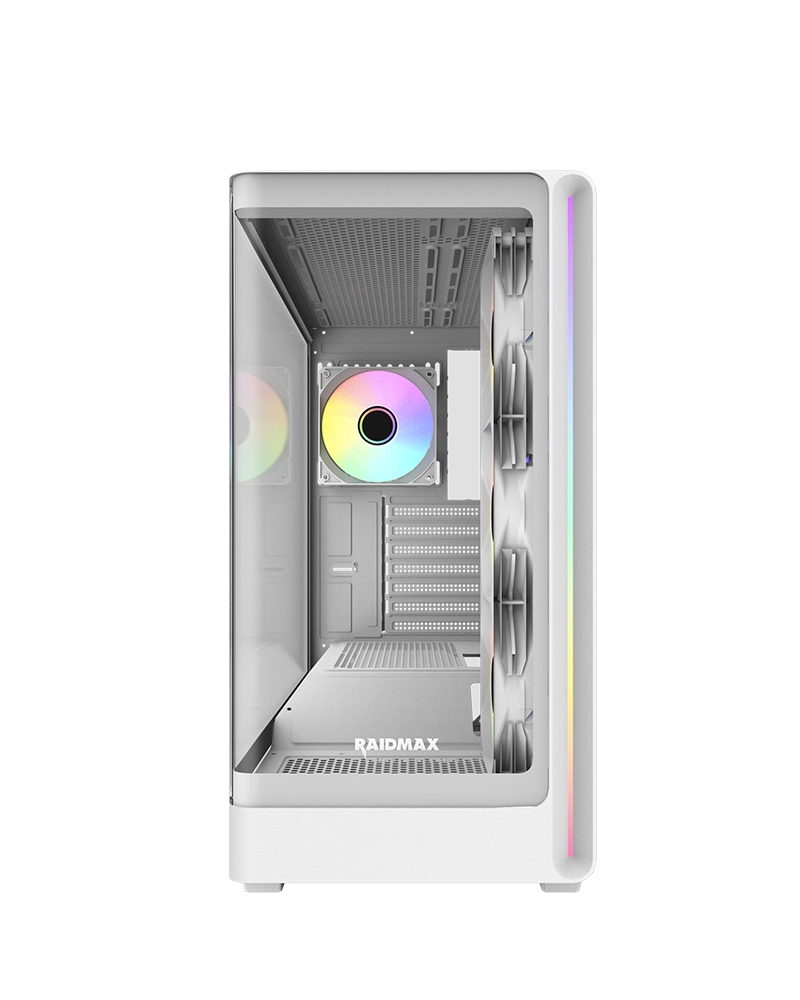

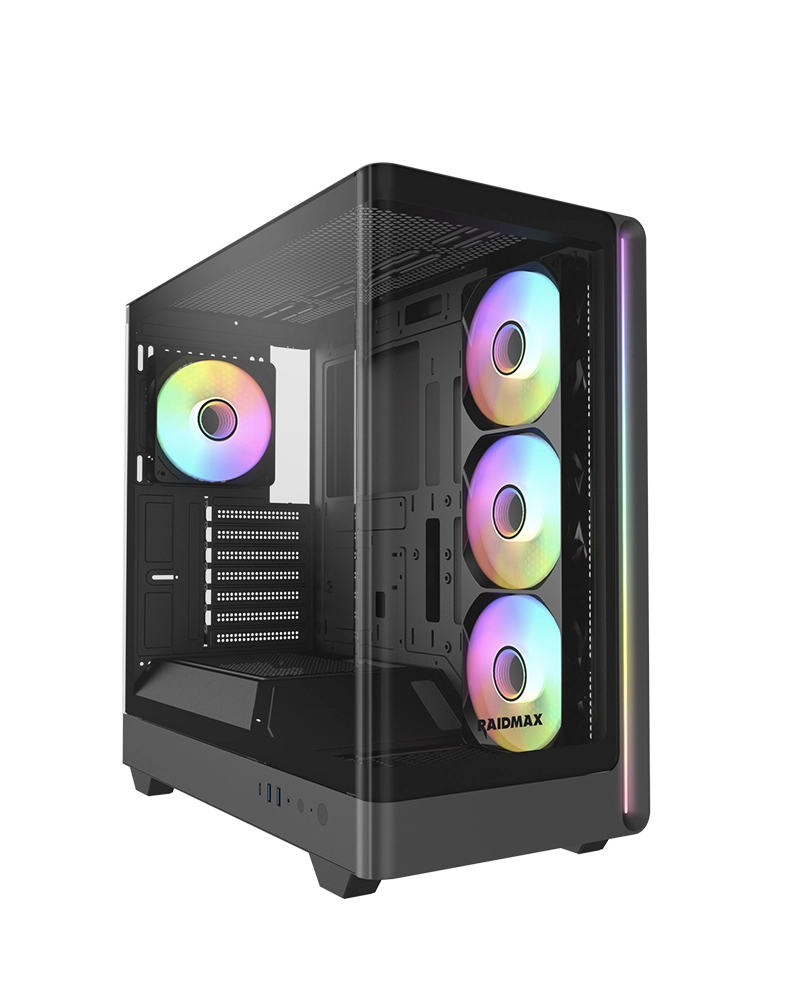

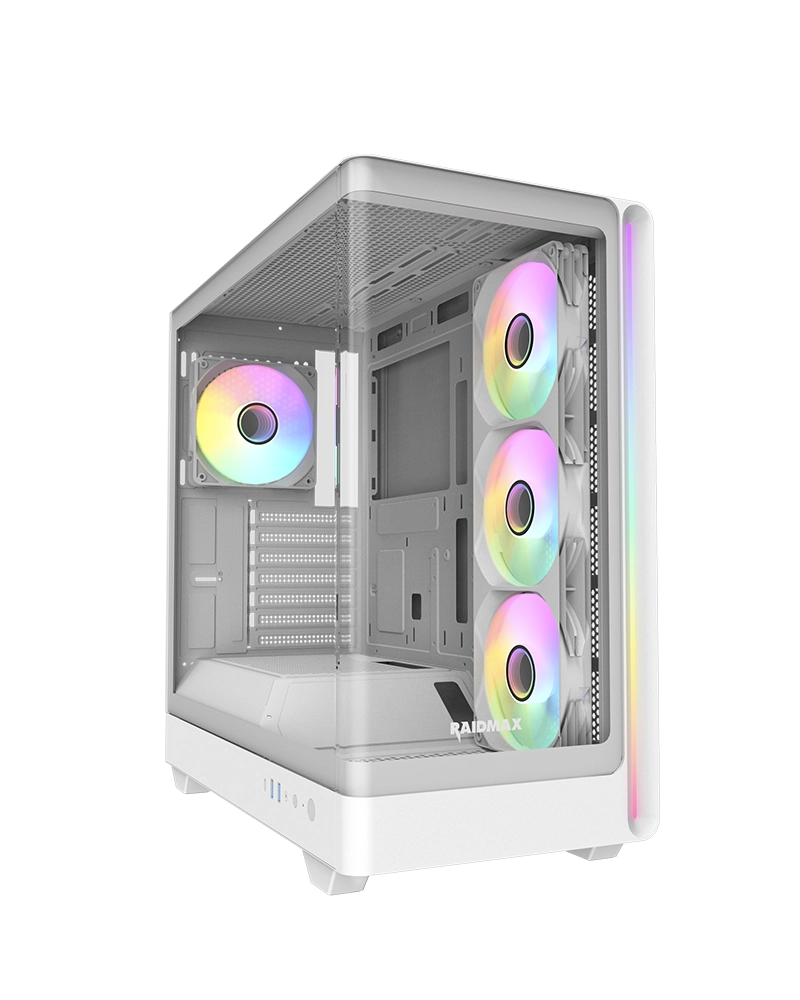

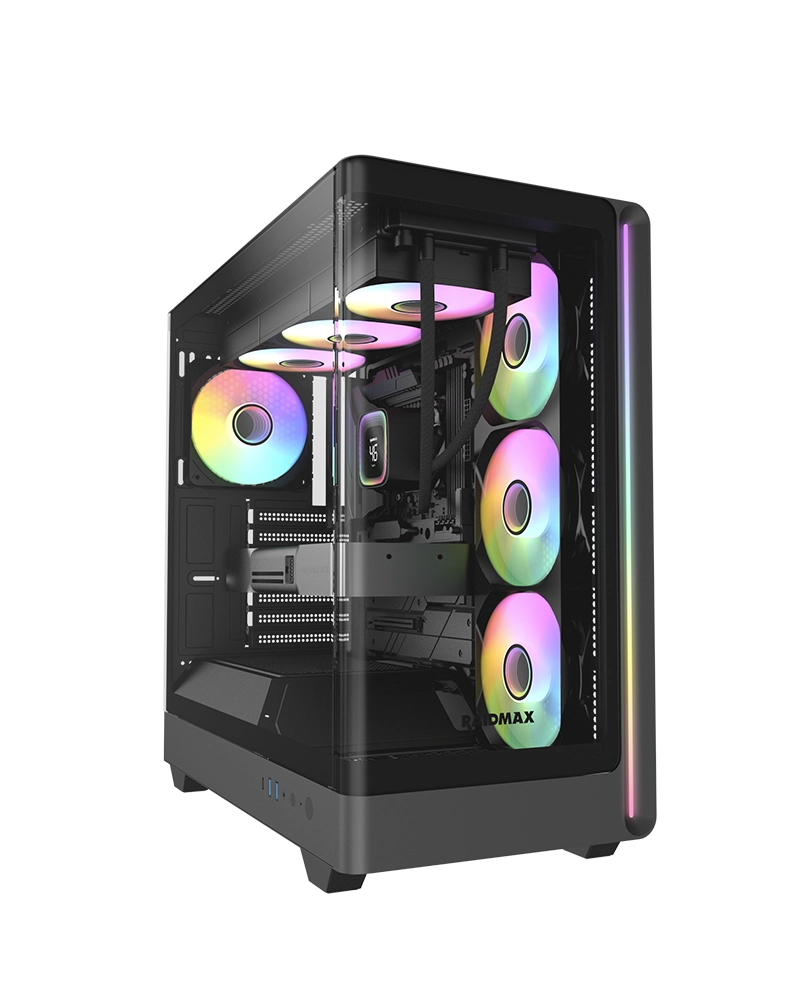

FULL VIEW. FULL IMPACT.
A 270° panoramic glass design showcases every detail of your build.

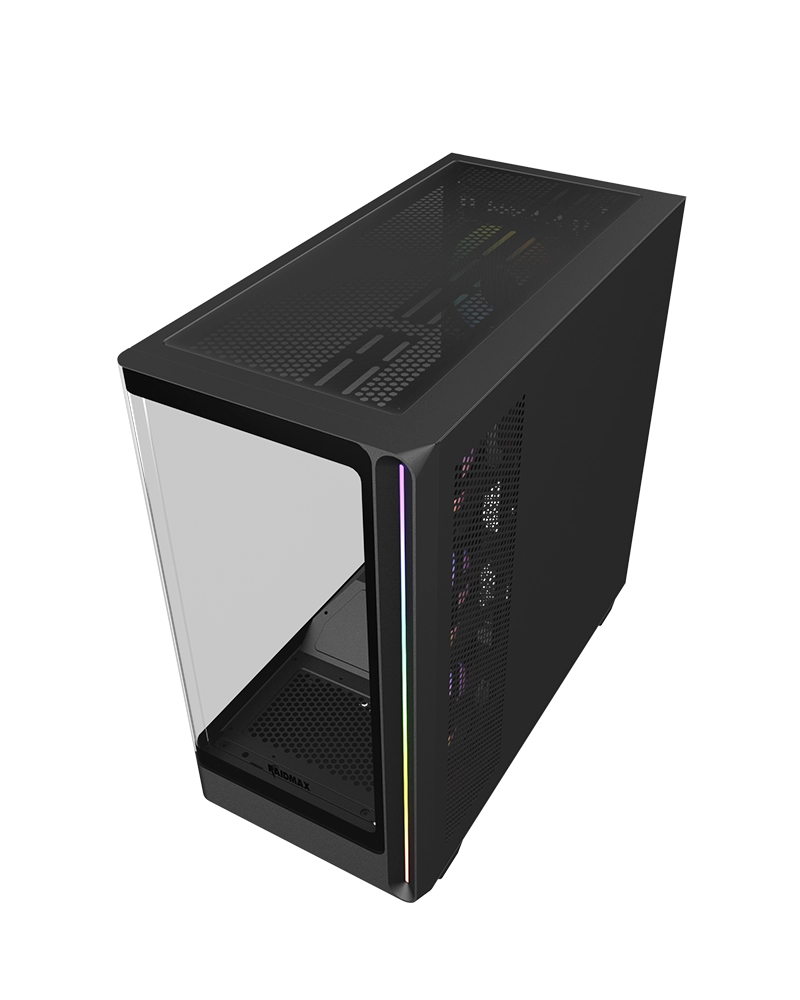

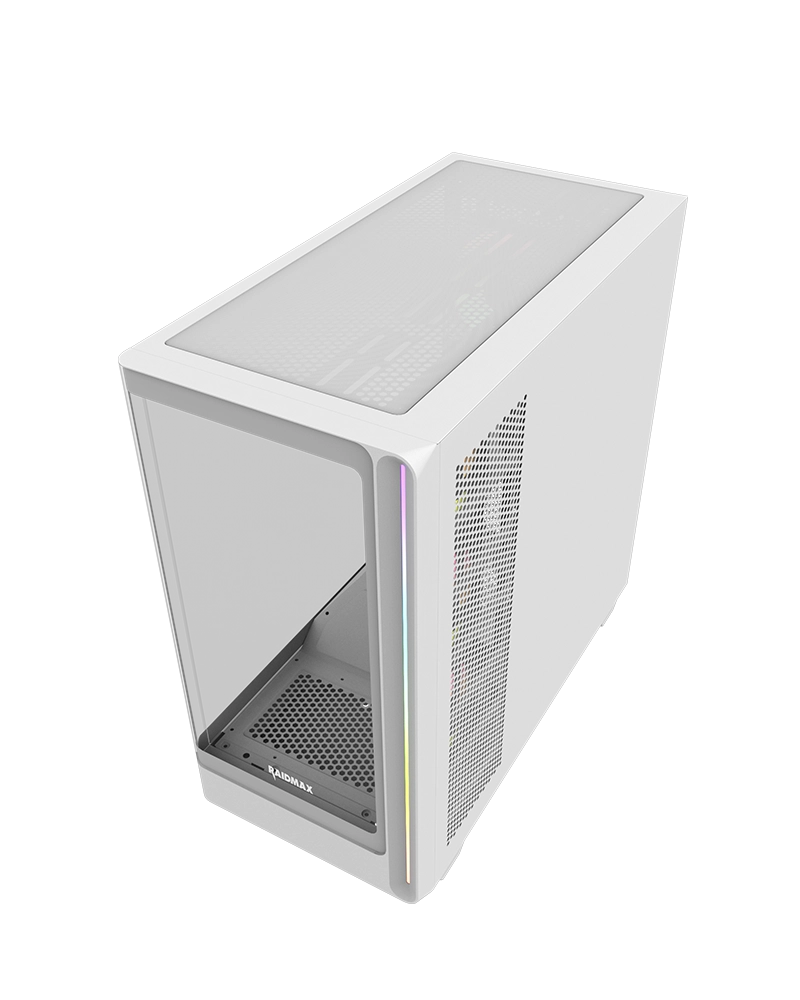

CURVED GLASS, INTEGRATED LIGHTING
Edge-to-edge curved glass with built-in ARGB LED strip for a refined, modern aesthetic.

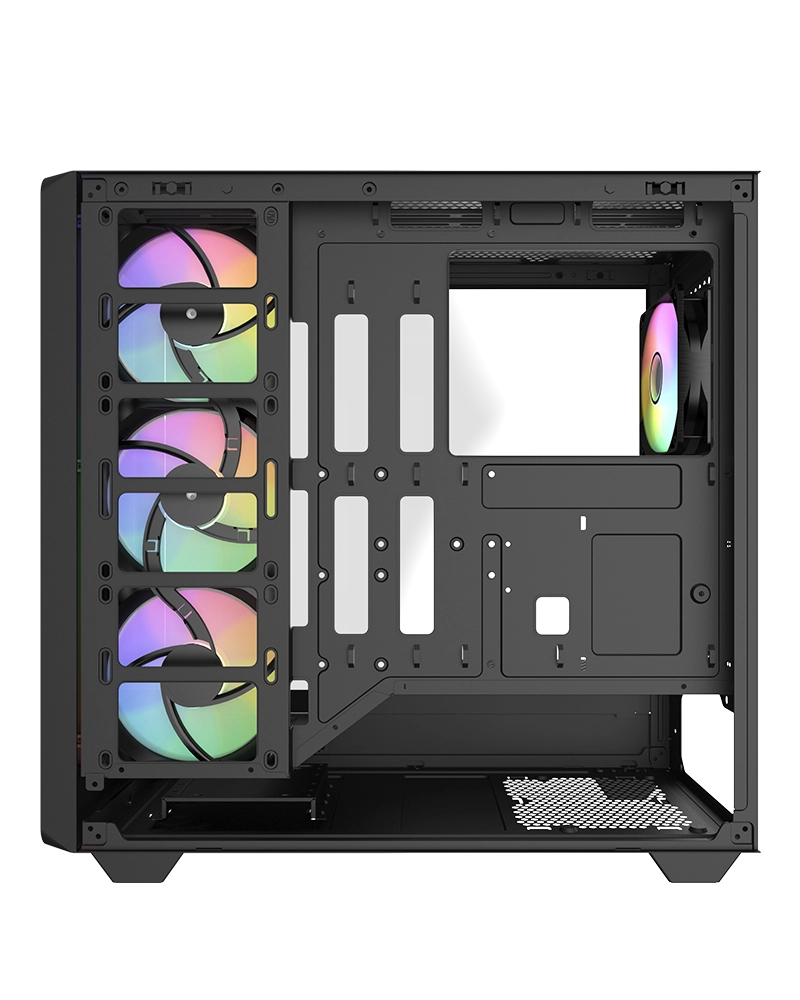

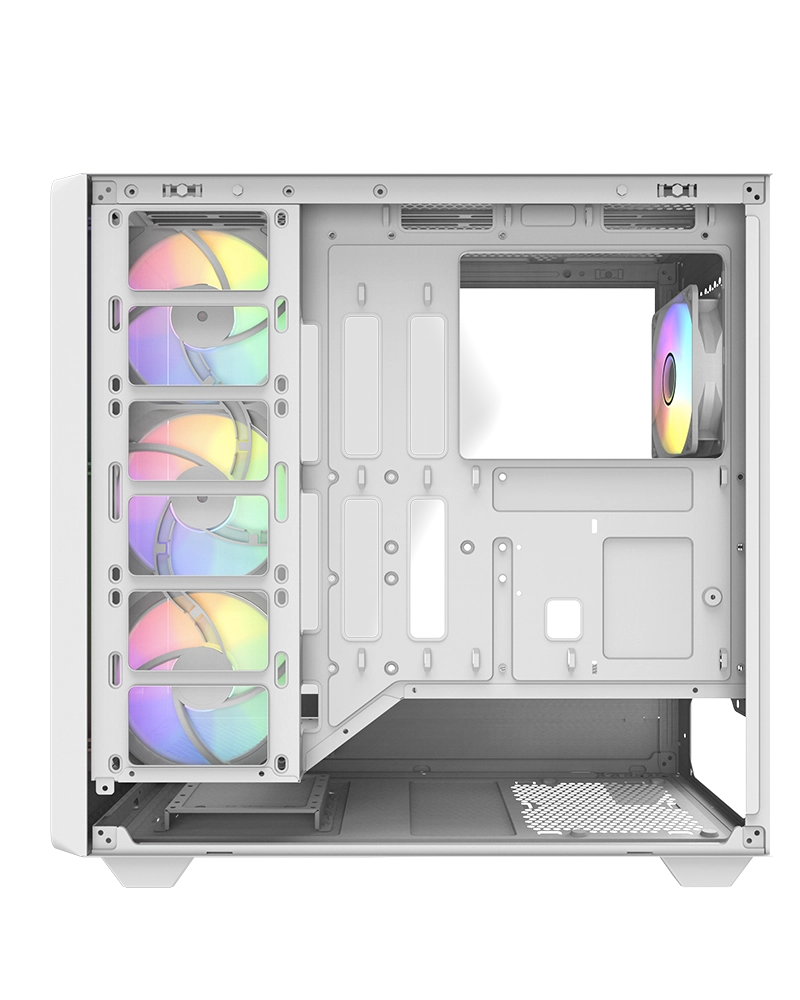

IMMERSIVE ARGB LIGHTING

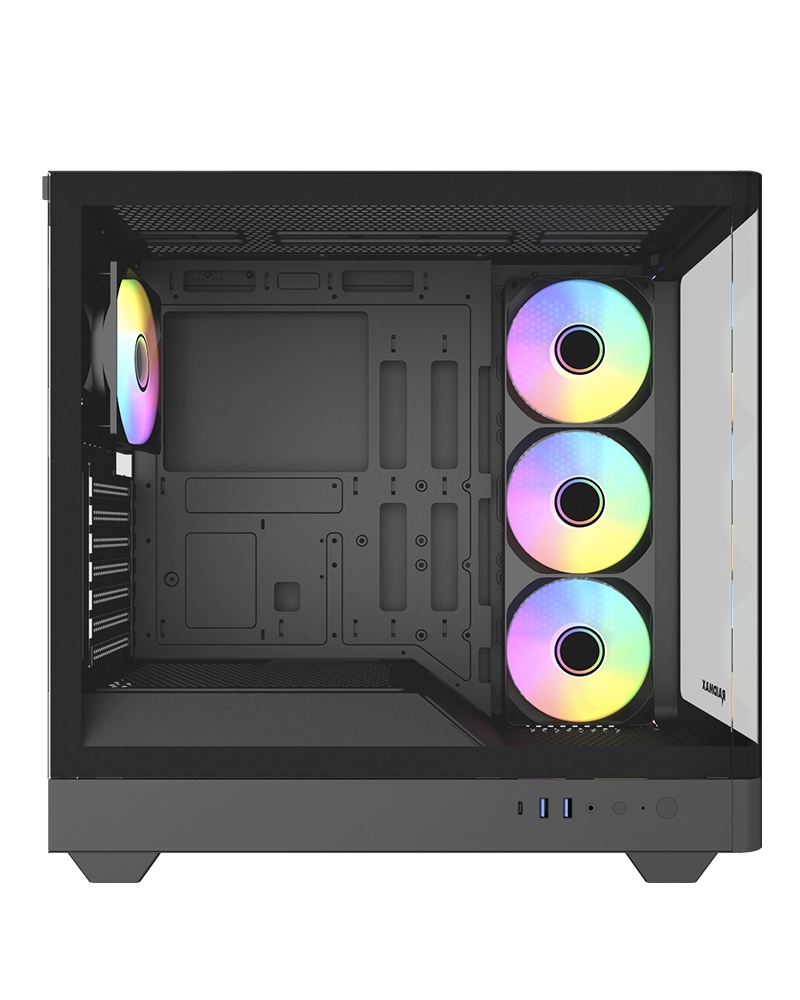

A one-piece 360mm side ARGB reverse fan paired with a 120mm rear ARGB fan creates rich, dynamic lighting. Fully syncable via motherboard or built-in LED control.

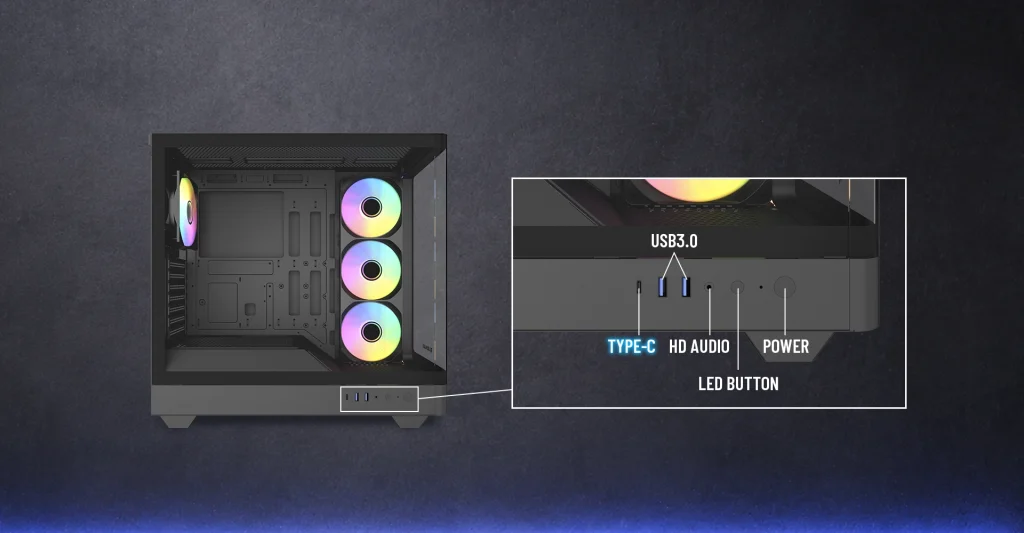

I/O PANEL
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | i820 |
| PRODUCT NO. | i820BF (Black) / i820WF (White) |
| DIMENSIONS (mm) | 445(L) x 225(W) x 450(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Steel, Tempered Glass, Plastic |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | Type-C x 1, USB3.0 x 2 , HD Audio, Power, LED Button |
| FAN Support | Top: 140mm x 2 / 120mm x 3, Side: 120mm x 3, Rear: 120mm x 1, PSU Chamber: 120mm x 1 |
| PREINSTALLED FAN (s) | ARGB LED Fan One-Piece 360mm (Side) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR Support | Top: 360mm, Rear: 120mm |
| MAX. GPU LENGTH | 410mm |
| MAX.CPU COOLER HEIGHT | 179mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU |

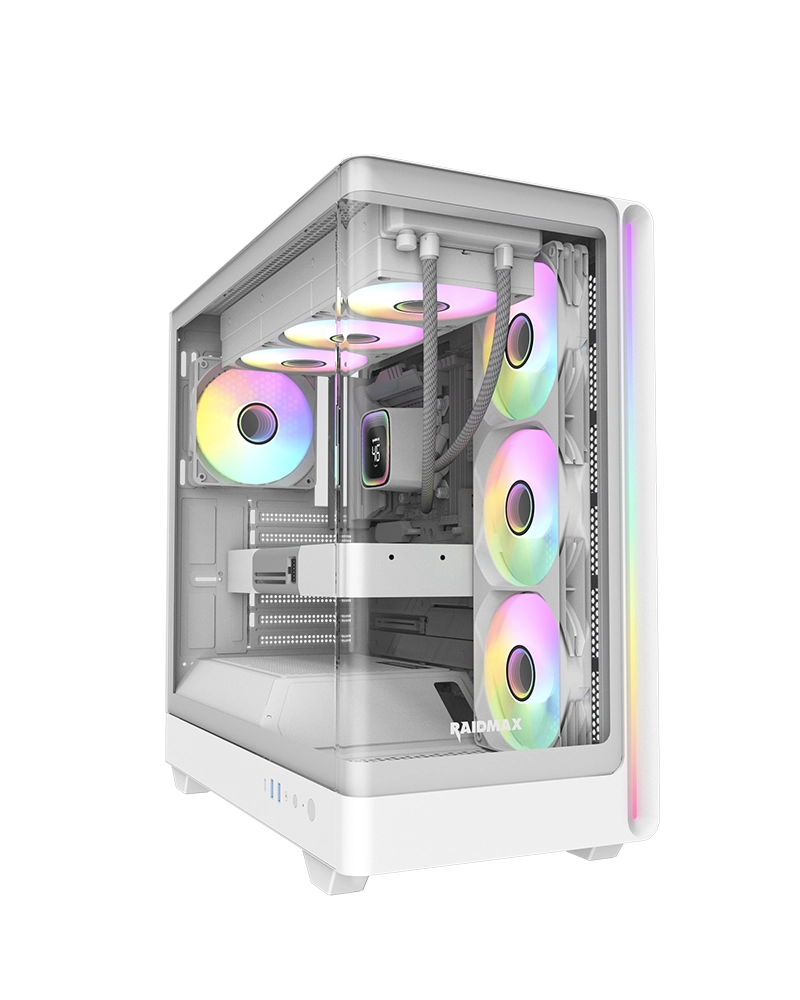

FULL VIEW. FULL IMPACT.
A 270° panoramic glass design showcases every detail of your build.
CURVED GLASS, INTEGRATED LIGHTING
Edge-to-edge curved glass with built-in ARGB LED strip for a refined, modern aesthetic.
IMMERSIVE ARGB LIGHTING

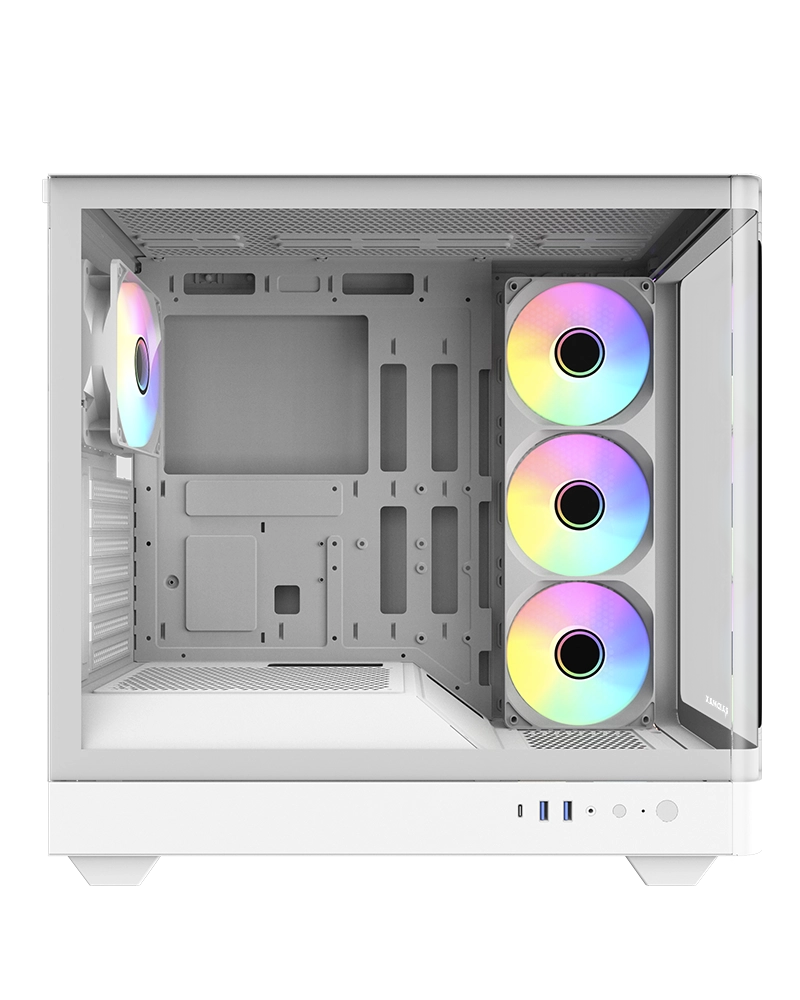

A one-piece 360mm side ARGB reverse fan paired with a 120mm rear ARGB fan creates rich, dynamic lighting. Fully syncable via motherboard or built-in LED control.
