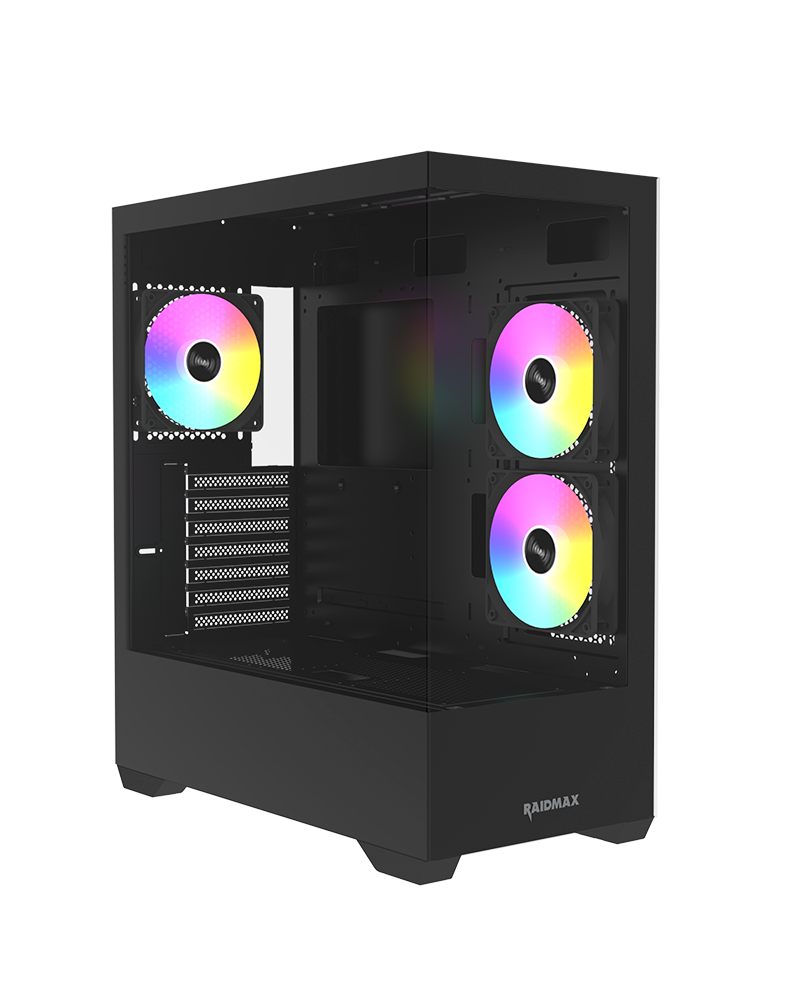

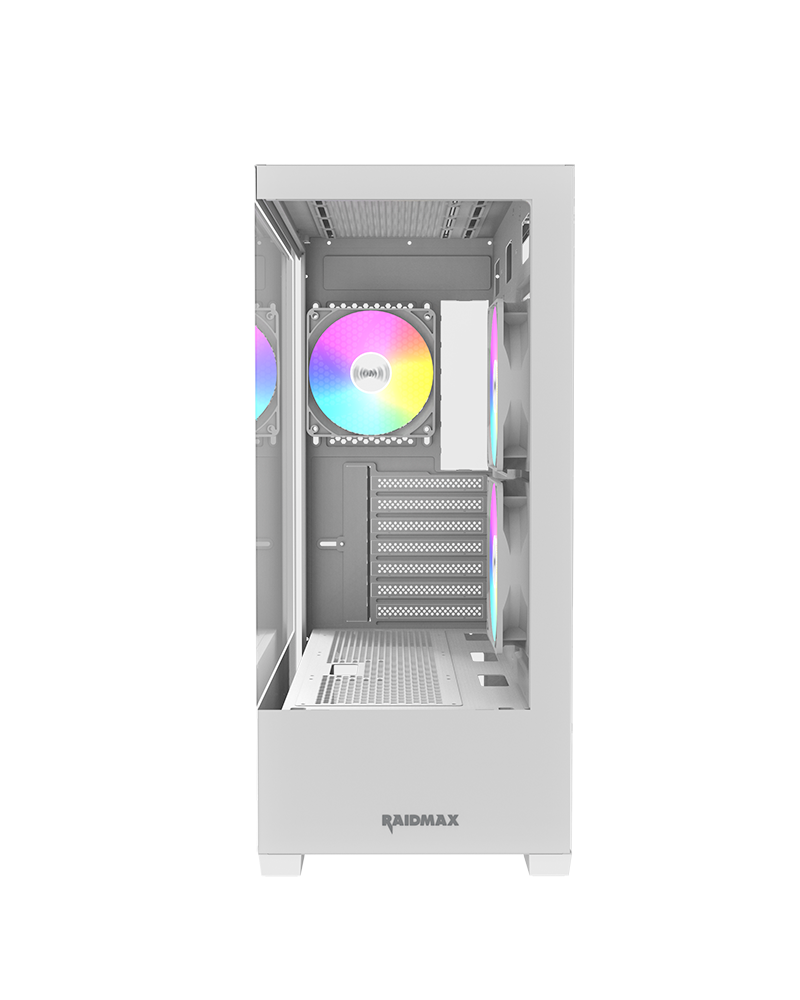

DESIGN OF SLEEK &
FRAMELESS CRYSTAL
There is no front panel obstruction, and the design features twotempered glass panels at the front and sides, enhancing visibilityfor gamers to clearly observe the cool components within.
DESIGN OF SLEEK &
FRAMELESS CRYSTAL
There is no front panel obstruction, and the design features twotempered glass panels at the front and sides, enhancing visibilityfor gamers to clearly observe the cool components within.

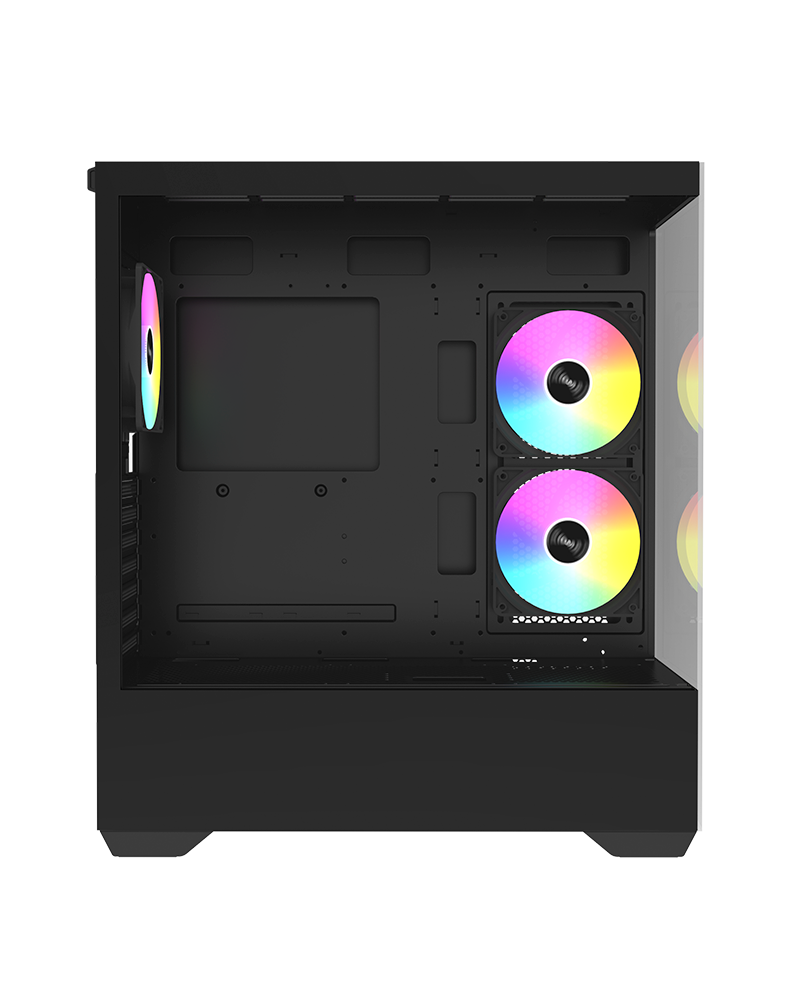

LIGHTING EFFECT
Included are 3 x120mm ARGB fans, two positioned at the M/Btray and one at the rear, allowing you to easily manage theirlighting effects through either the LED light switch button oryour ARGB-compatible motherboard.
LIGHTING EFFECT
Included are 3 x120mm ARGB fans, two positioned at the M/B tray and one at the rear, allowing you to easily manage their lighting effects through either the LED light switch button or your ARGB-compatible motherboard.

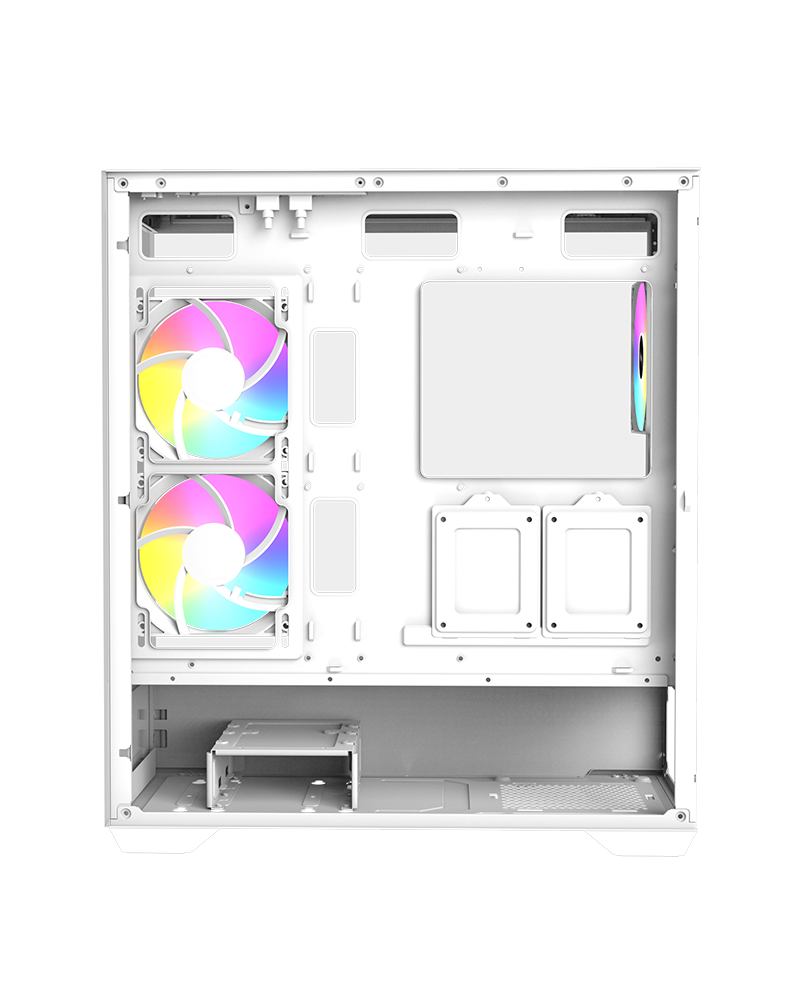

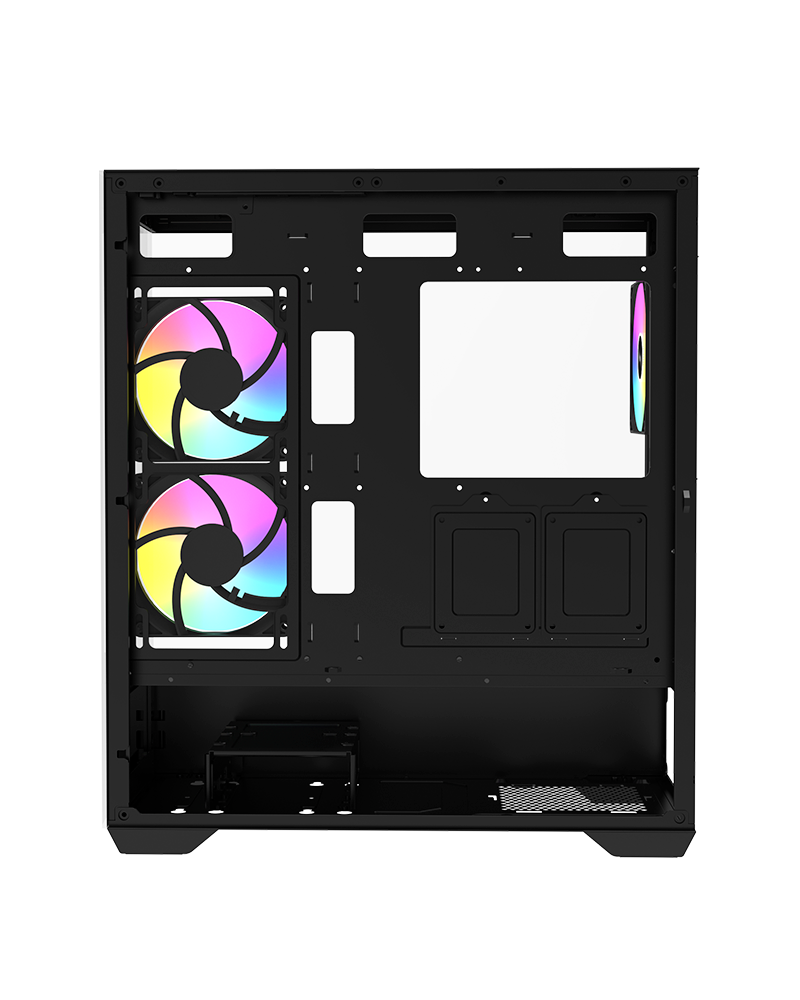

REVERSE ARGB FAN
Incorporating two fans with reversed blades on the motherboard tray enhances air intake within the interior case, resulting in superior airflow and an overall improved ventilation system.
REVERSE ARGB FAN
Incorporating two fans with reversed blades on the motherboard tray enhances air intake within the interior case, resulting in superior airflow and an overall improved ventilation system.
TEMPERD GLASS
SLIDING SIDE PANEL
I801 is designed with a slide side path panel with 4mm thickness tempered glass to let you easily remove and assemble it.
TEMPERD GLASS
SLIDING SIDE PANEL
i801 is designed with a slide side path panel with 4mm thickness tempered glass to let you easily remove and assemble it.

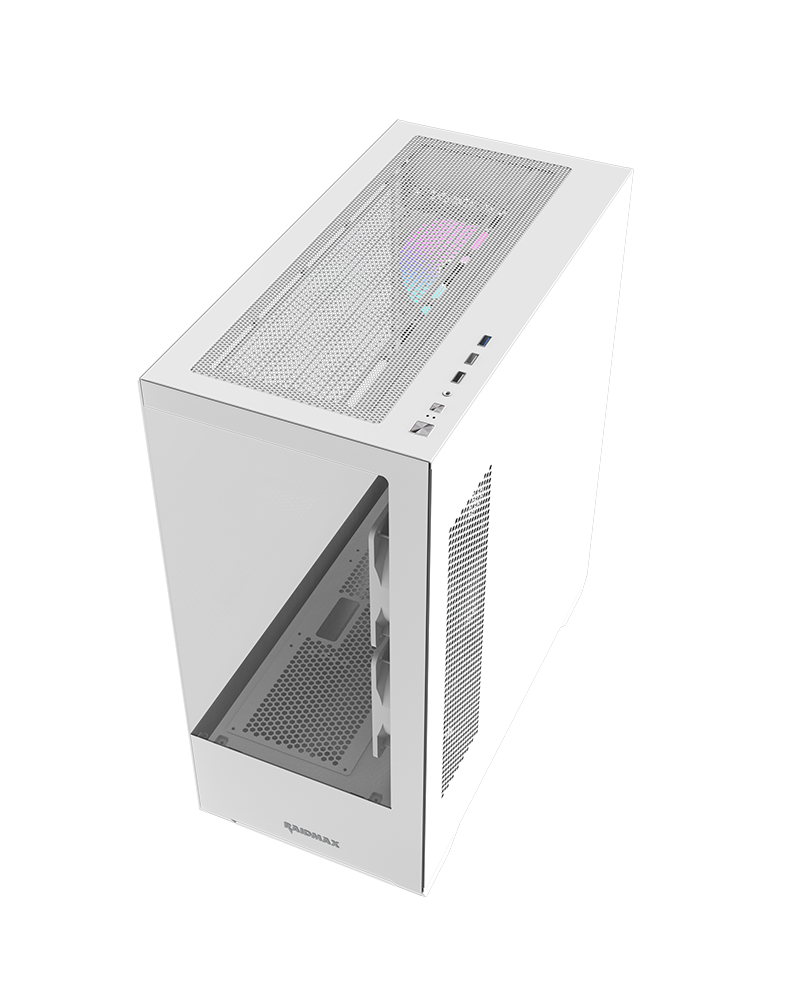

EASY MAINTENANCE
i801 is equipped with a rubber logo tab at the magnetic dust filters on the top of case. It looks sleeker and would be simply,easy,and convenient maintenance.
EASY MAINTENANCE
i801 is equipped with a rubber logo tab at the magnetic dust filters on the top of case. It looks sleeker and would be simply, easy,and convenient maintenance.
I/O PORT
01 Power
02 Reset
03 USB 2.0
04 USB 3.0
05 LED Button
I/O PORT
01 Power
02 Reset
03 USB 2.0
04 USB 3.0
05 LED Button
COOLING SYSTEM
FANS:
M/B Tray: 120mm x 2
Top: 120mm x 3 / 140mm x 2
Rear: 120mm x 1
PSU Chamber: 120mm x 3
RADIATOR:
M/B Tray: 120/240mm
Top: 120/140/240/280/360mm
Rear: 120mm
COOLING SYSTEM
FANS:
M/B Tray: 120mm x 2
Top: 120mm x 3 / 140mm x 2
Rear: 120mm x 1
PSU Chamber: 120mm x 3
RADIATOR:
M/B Tray: 120/240mm
Top: 120/140/240/280/360mm
Rear: 120mm
COMPATIBILITY
&CLEARANCES
COMPATIBILITY
CLEARANCES
A Motherboard Support Up to E-ATX
B CPU Cooler Support Up to 165mm
C Graphics Card Support Up to 400mm
A Motherboard Support Up to E-ATX
B CPU Cooler Support Up to 165mm
C Graphics Card Support Up to 400mm
AIRFLOW DIAGRAM
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | i801 |
| Product NO. | i801TBF(Black) |
| DIMENSIONS | 420(L) x 210(W) x 485(H) |
| MOTHERBOARD SUPPORT | E-ATX / ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 2 / 2 |
| I/O Ports | USB3.0 x 1, USD2.0 x 2, HD Audio, Power, Reset, Fan LED Button |
| FAN SUPPORT | M/B Tray : 120mm Top : 120mm x 3 / 140mm x 2 Rear : 120mm x 1 PSU Chamber : 120mm x 3 |
| PREINSTALLED FAN(s) | ARGB LED Fan 120mm x 2 (M/B Tray) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR Support | M/B Tray : 240mm Top : 360mm Rear : 120mm |
| MAXIMUM GPU LENGTH | 400mm |
| MAXIMUM CPU COOLER HEIGHT | 165mm |
| SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU Support | Standard PS2 / ATX PSU ( Bottom Mounted) |
