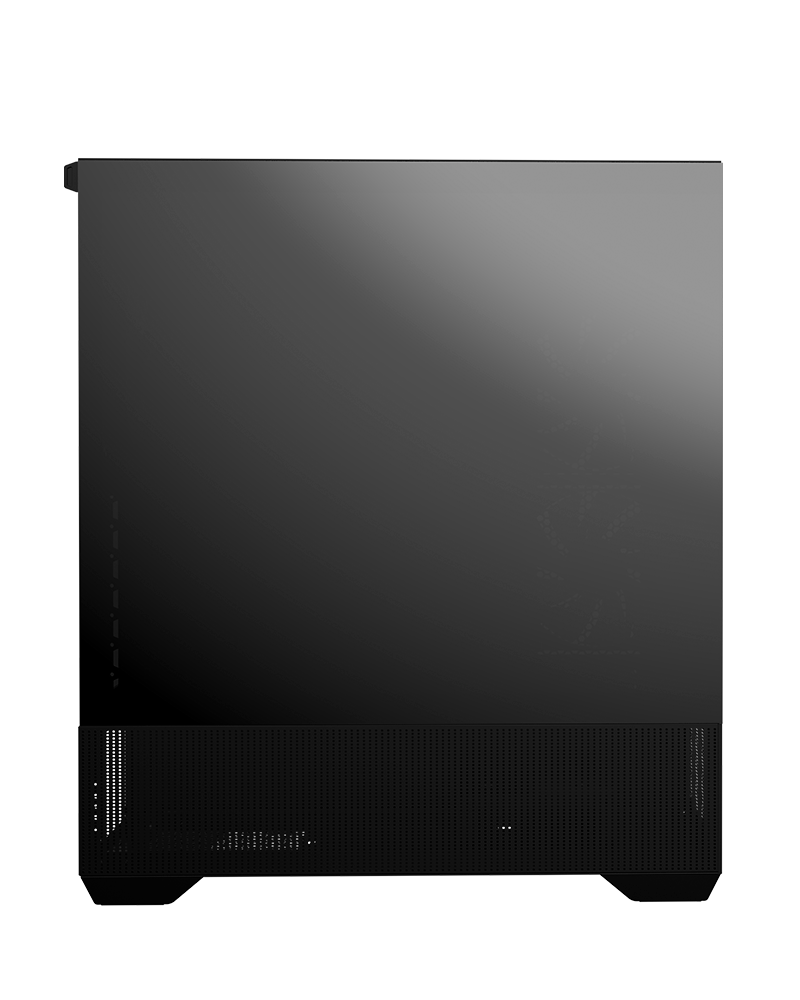

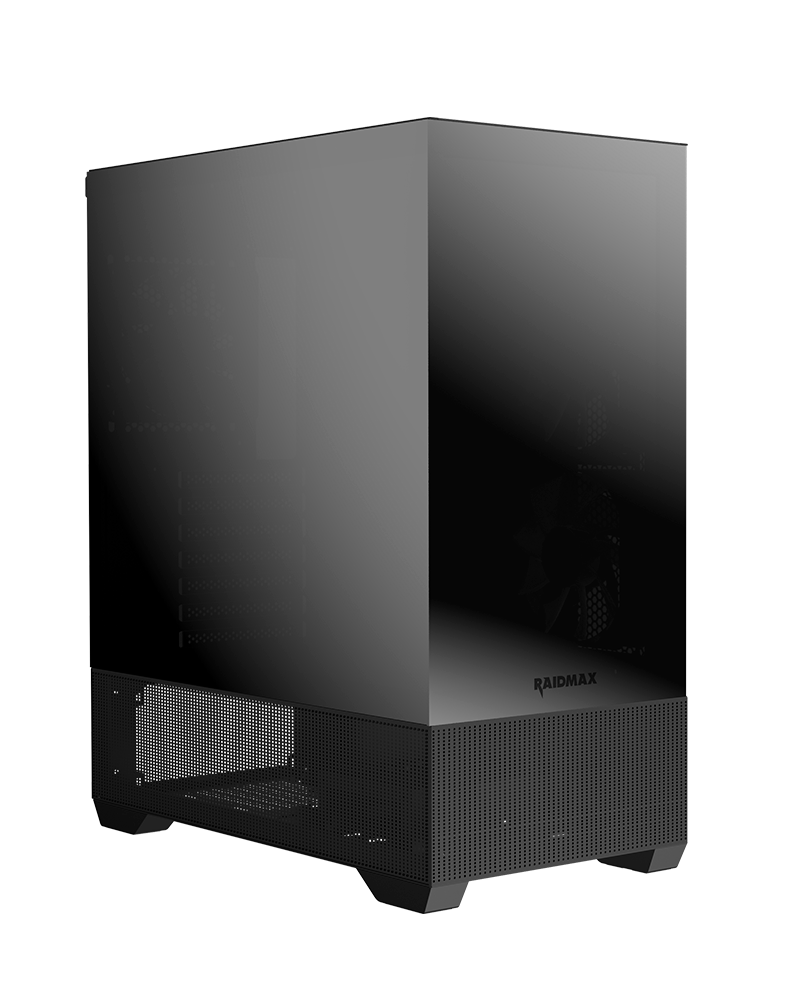

FRAMELESS DESIGN WITH MIRROR-FINISH ELEGANCE
Dual tempered glass panels with a chrome-coated mirror finish offer a sleek, modern look while showcasing your high-performance components in crystal-clear detail. Ideal for gamers who value both style and performance.

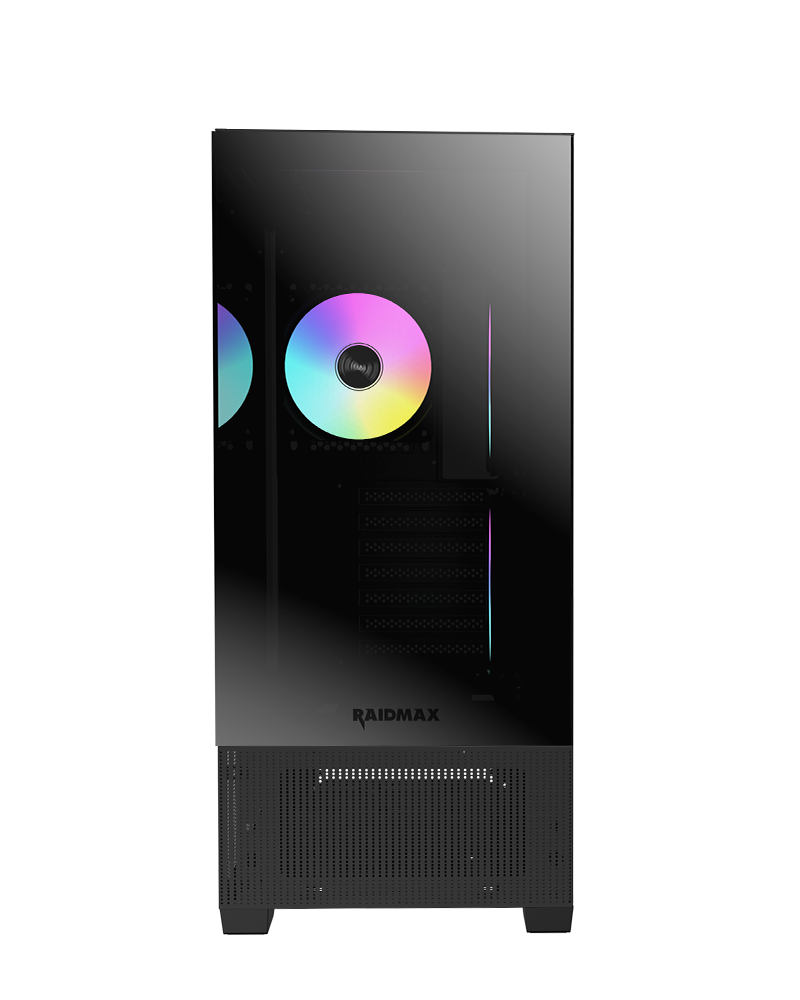

VIBRANT LIGHTING EFFECTS
Includes 3x 120mm ARGB fans—two on the side and one at the rear. Effortlessly control the lighting via the LED switch or your ARGB-compatible motherboard for a dynamic, customizable glow.
REVERSE ARGB FAN
By integrating two side-mounted fans with reversed blades, air intake is significantly enhanced, leading to optimized airflow and an overall improvement in the case’s ventilation system.

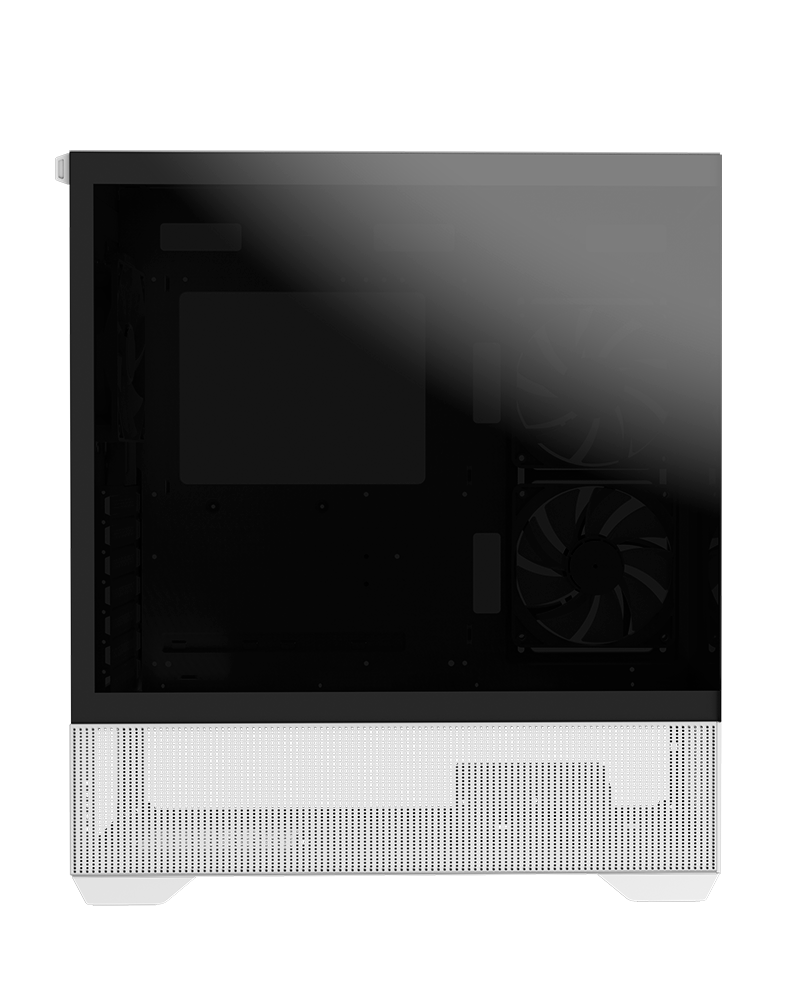

TEMPERED GLASS SIDE PANEL
It is designed with a tool-less side panel with 4mm tempered glass,allowing you to easily open, remove, and assemble the panel using justyour fingers.
EASY MAINTENANCE
It is equipped with the magnetic dust filters on the top of case. It would be simply, easy, and convenient maintenance.
PERFORATED PSU CHAMBER FOR ENHANCED AIRFLOW
Designed with perforated panels, the PSU chamber boosts airflow, improving heat dissipation and maximizing overall cooling efficiency for your system.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | i801 AIR Chrome |
| PRODUCT NO. | i801ACBF (Black) / i801ACWF (White) |
| DIMENSIONS (mm) | 424(L) x 215(W) x 485(H) |
| MOTHERBOARD SUPPORT | E-ATX / ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 2 / 2 |
| I/O Ports | Type-C x 1, USB3.0 x 2, USD2.0 x 1, HD Audio, Power, Fan LED Button |
| FAN Support | Top: 120mm x 3 / 140mm x 2 , Rear: 120mm x 1 , Side: 120mm x 2 , PSU Chamber: 120mm x 3 |
| PREINSTALLED FAN (s) | ARGB LED Fan 120mm x 2 (Side) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR Support | Top: 360mm , Side: 240mm , Rear: 120mm |
| MAX. GPU LENGTH | 390mm |
| MAX.CPU COOLER HEIGHT | 165mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Bottom Mounted ) |
