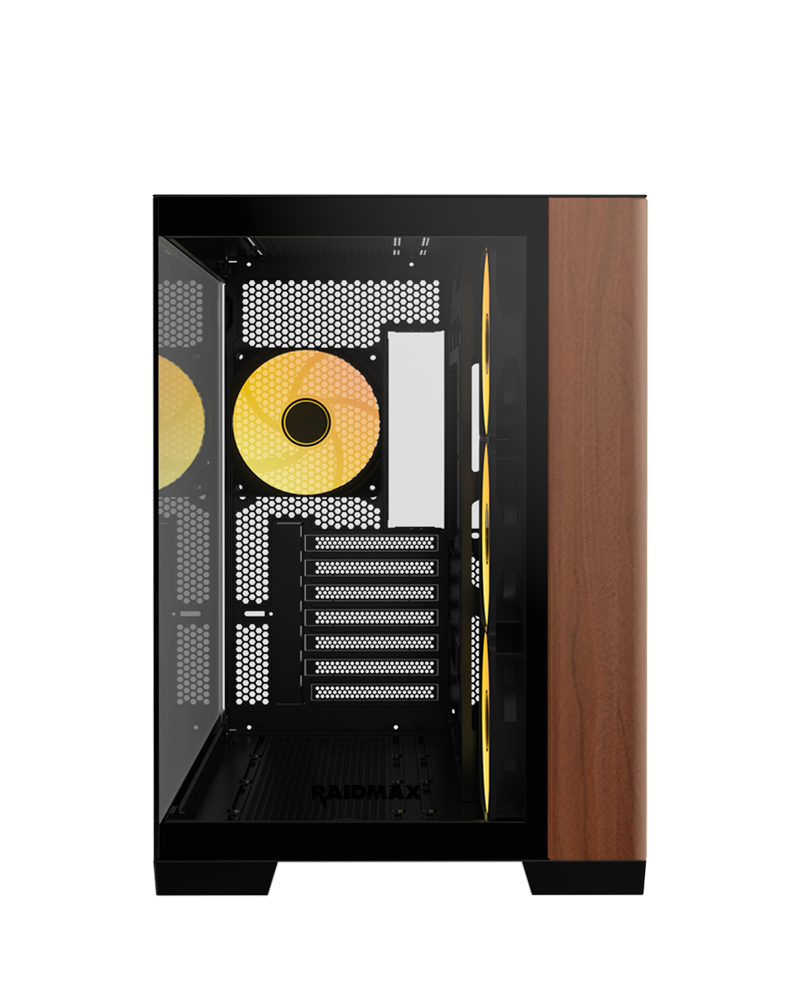

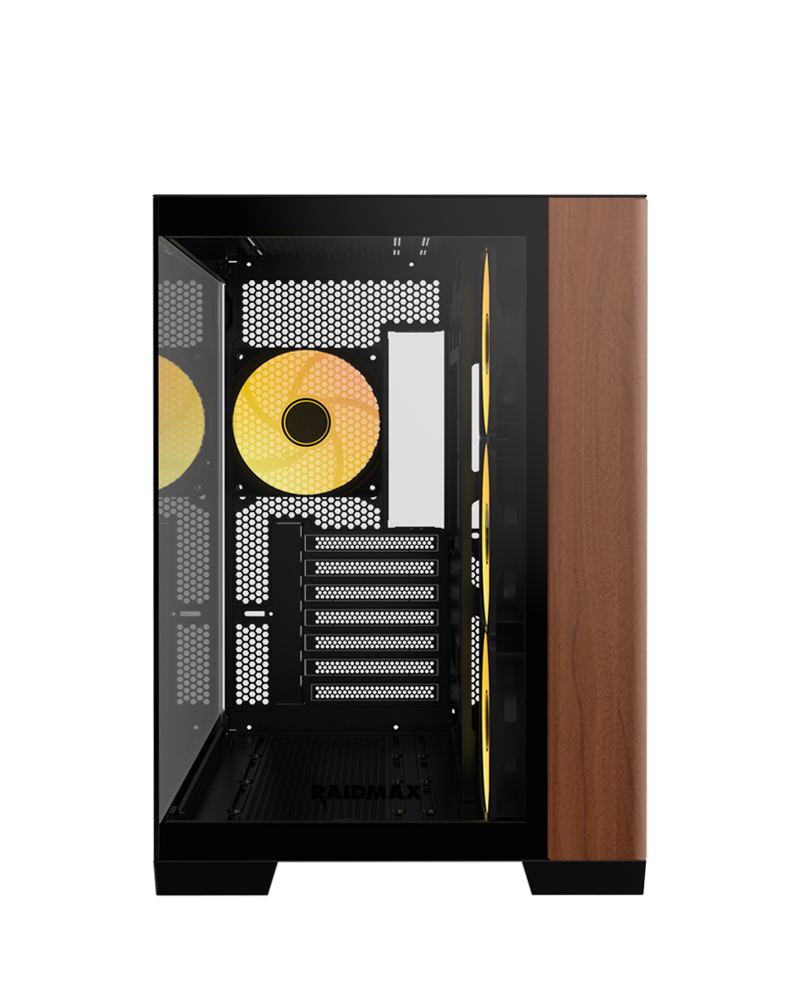

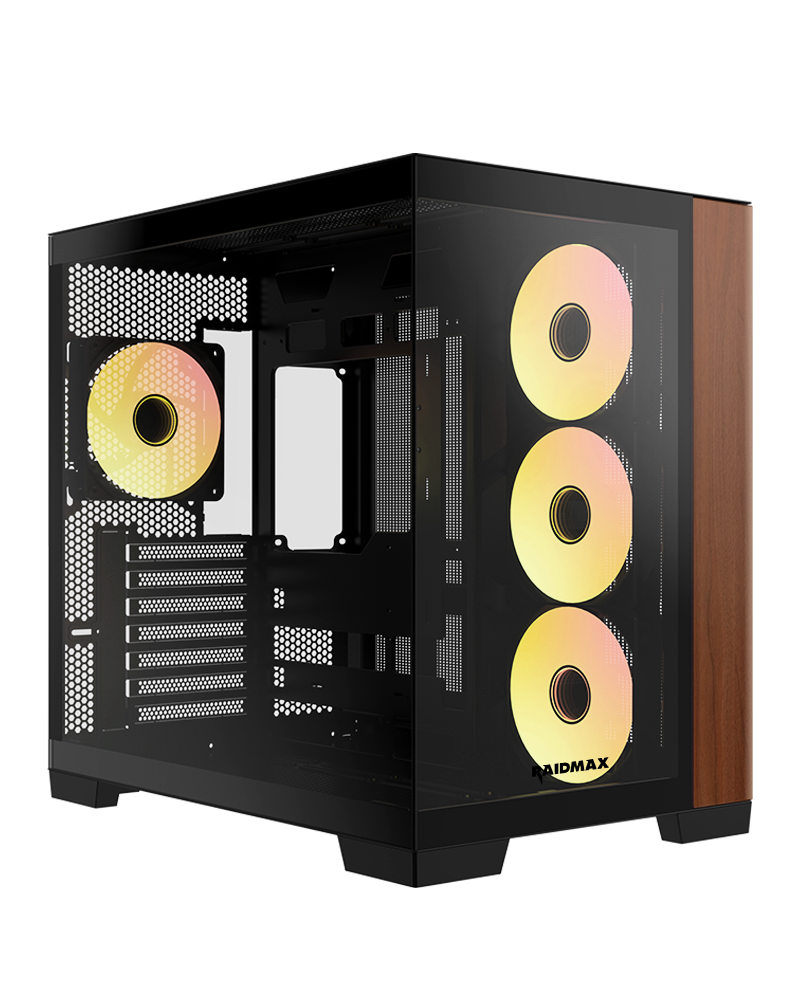

FRAMELESS DUAL-CHAMBER CRYSTAL DESIGN WITH ELEGANT WOOD ACCENTS
Elevate your gaming setup with a frameless dual-chamber crystal design, combining superior airflow and cable management with a full view of your components. The elegant wood accents add a refined touch, making this the perfect fusion of performance and style for any gamer.

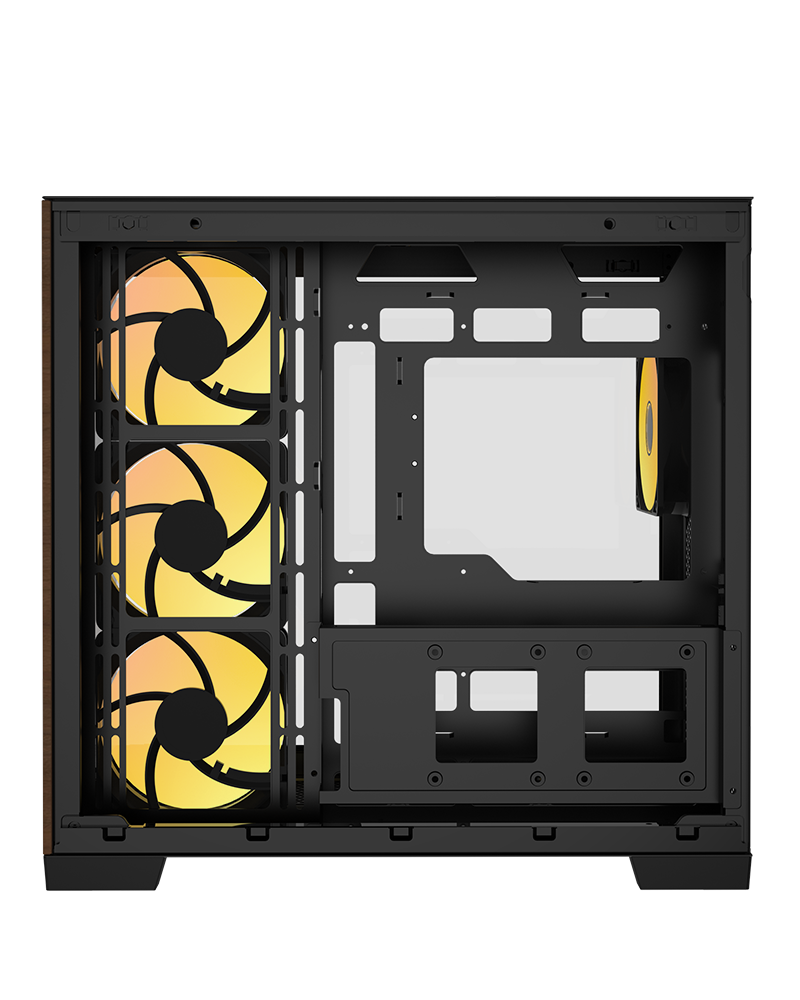

SUPPORTS BACK-CONNECT DESIGN MOTHERBOARD
The Back-Connect Design motherboard redefines efficiency by streamlining cable management and optimizing airflow, all while enhancing system aesthetics. This innovative layout ensures a sleek, clutter-free build and simplifies assembly, offering a seamless fusion of functionality and style.

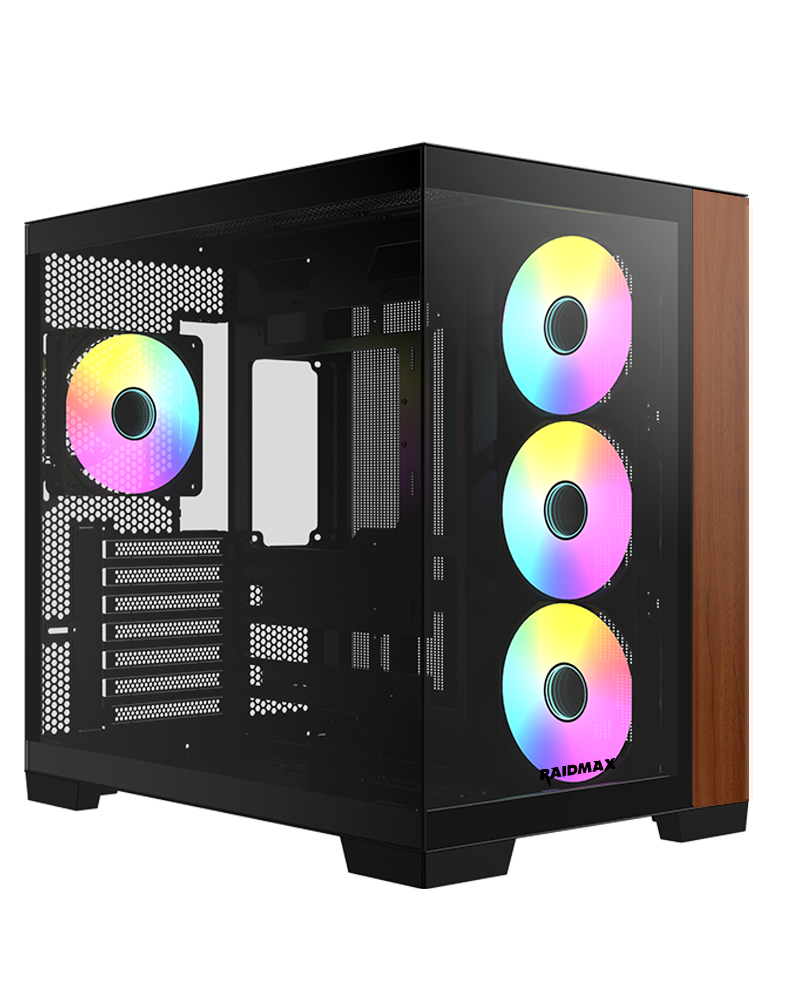

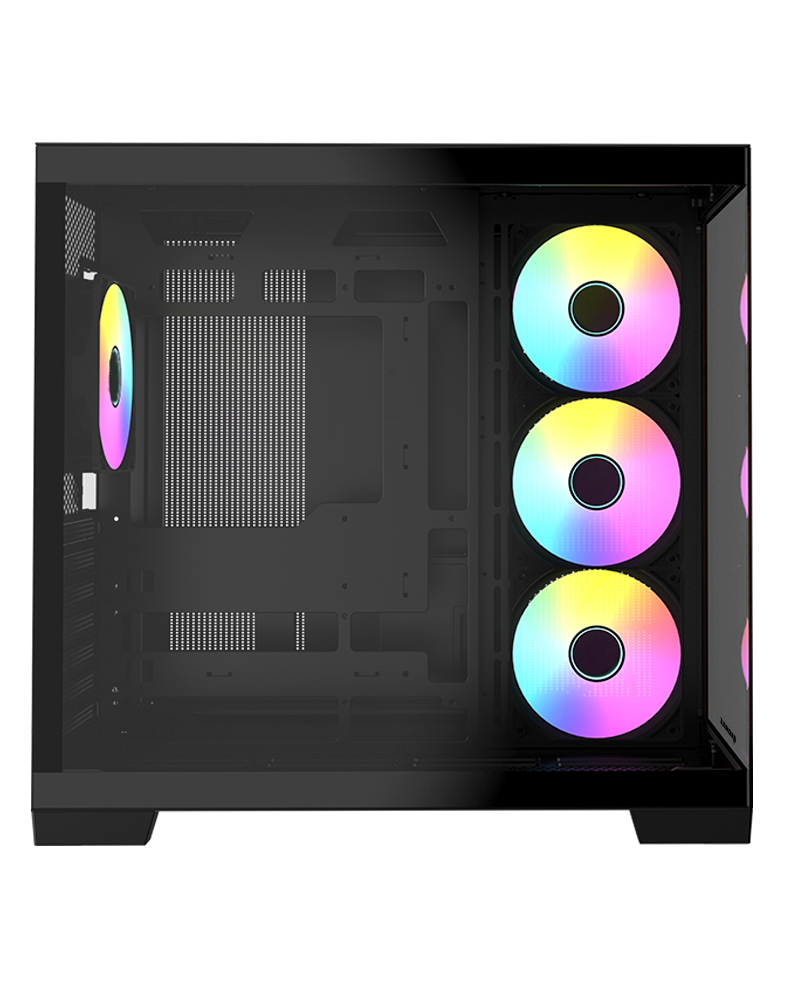

LIGHTING EFFECTS
Includes a One-Piece 360mm ARGB reverse fan on the side and a 120mm ARGB fan at the rear, enabling easy management of lighting effects through the LED light switch button or your ARGB-compatible motherboard.

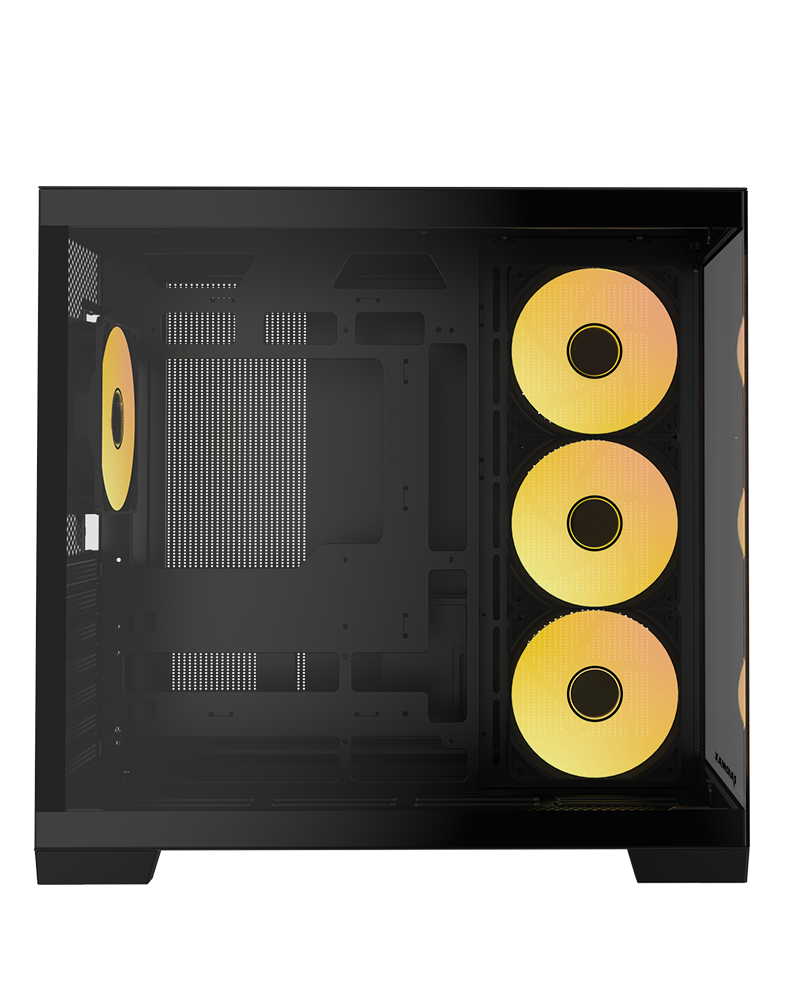

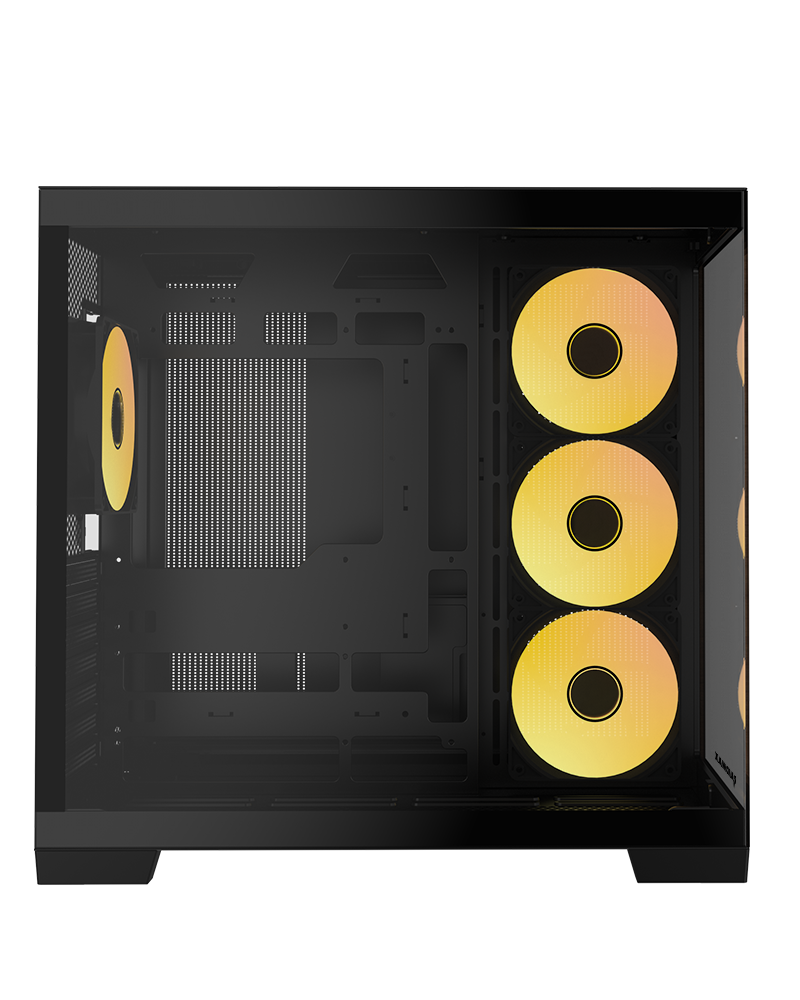

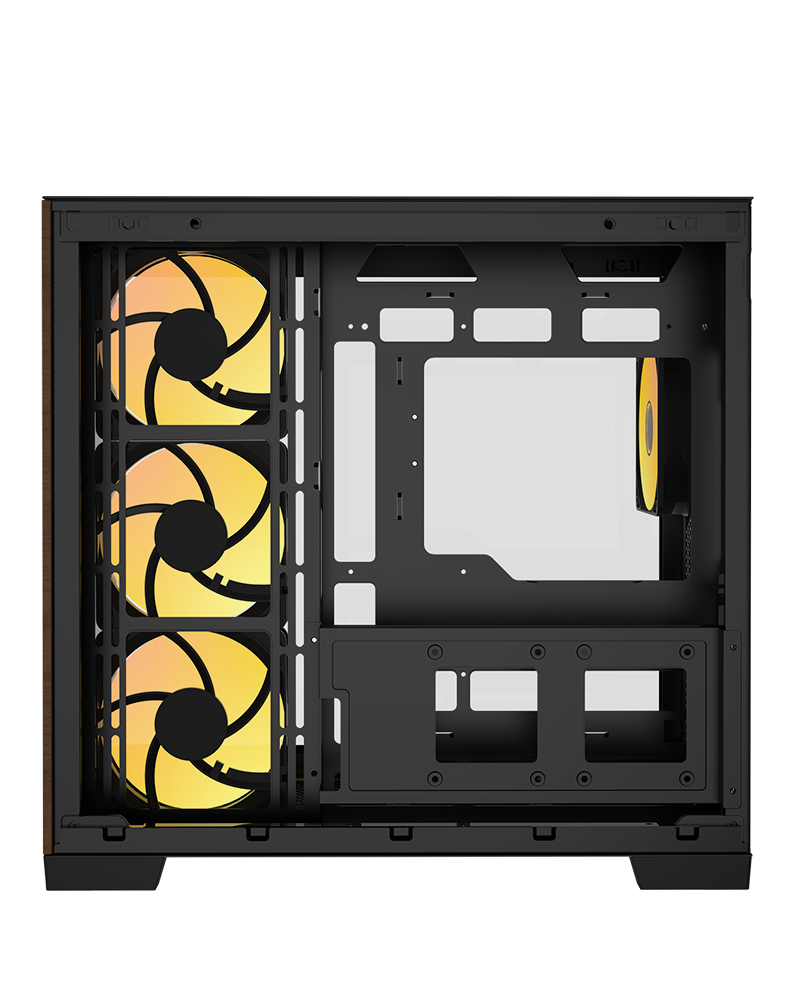

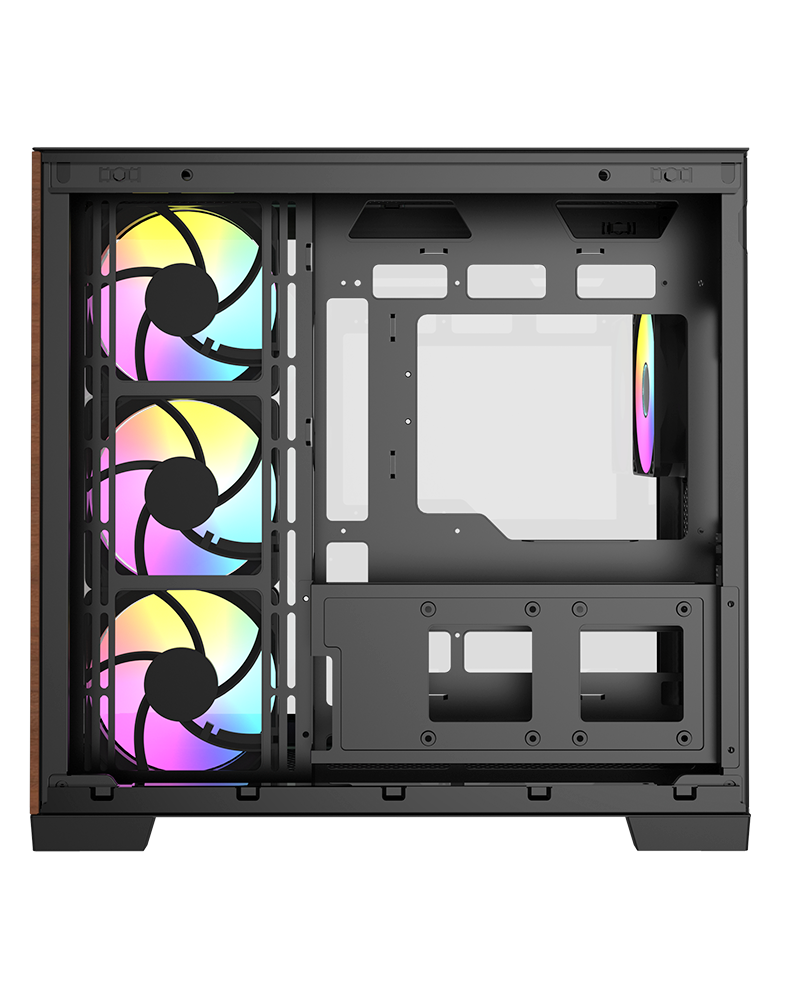

REVERSE 3 in 1 ARGB FAN
Incorporating 3 in 1 120mm ARGB with reversed blades on the side enhances air intake within the interior case, resulting in superior airflow and an overall improved ventilation system.
TEMPERED GLASS SIDE PANEL
Featuring tool-less, tempered glass side panels, this design enables
effortless access. Simply open, remove, and reassemble the panel
with ease—no tools required, just your hands.

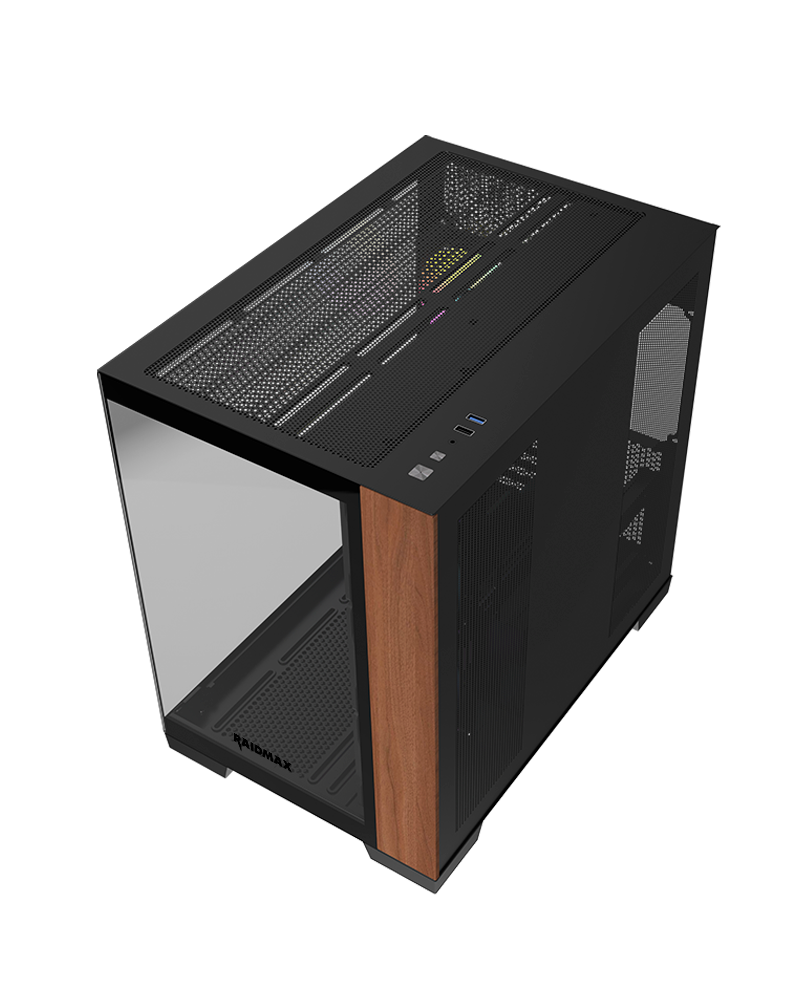

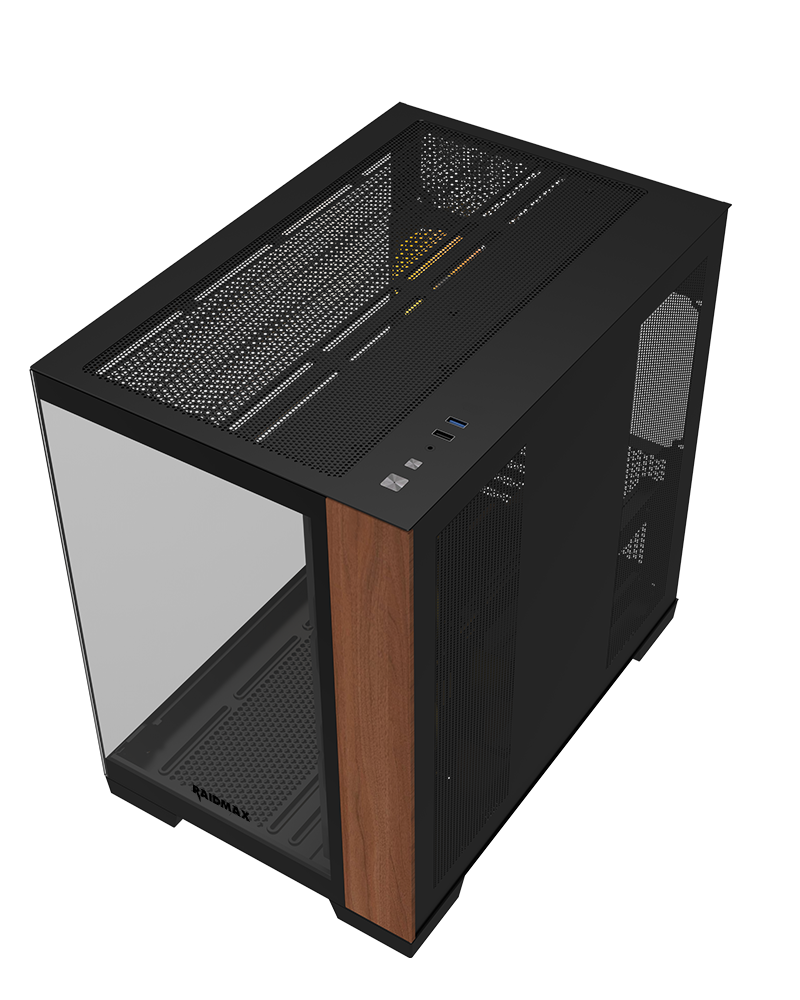

EASY MAINTENANCE
It is equipped with the magnetic dust filters on the top of case. It would be simply, easy, and convenient maintenance.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | i610 Wood |
| PRODUCT NO. | i610WBF (Black) |
| DIMENSIONS (mm) | 424(L) x 285(W) x 416(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | USB3.0 x 1, USB2.0 x 1, HD Audio, Power, LED |
| FAN Support | Side: 120mm x 3 / 140mm x 2, Top: 120mm x 3 / 140mm x 2, Rear: 120mm x 1, Bottom: 120mm x 3 / 140mm x 2 |
| PREINSTALLED FAN (s) | ARGB LED Fan One-Piece 360mm (Side) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR Support | Side: 240/280/360mm, Top: 240/280/360mm, Rear: 120mm, Bottom: 240/280/360mm |
| MAX. GPU LENGTH | 400mm |
| MAX.CPU COOLER HEIGHT | 175mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Bottom Mounted) |
