FRAMELESS DUAL-CHAMBER CRYSTAL DESIGN WITH MIRROR-FINISH ELEGANCE
The frameless dual-chamber crystal design combines cutting-edge aesthetics with functional elegance. Its sleek, mirror-finish exterior not only enhances the visual appeal but also maximizes internal airflow for optimized cooling. This layout ensures a seamless balance between performance and style, making it perfect for users seeking both beauty and efficiency in their setup.
SUPPORTS BACK-CONNECT DESIGN MOTHERBOARD
The Back-Connect Design motherboard revolutionizes efficiency, offering enhanced cable management and optimized airflow. By minimizing clutter, this innovative layout simplifies assembly while delivering a clean and stylish build. It seamlessly combines aesthetics with functionality, ensuring both practical performance and a polished, modern look.
LIGHTING EFFECTS
includes a One-Piece 360mm ARGB reverse fan on the side and a 120mm ARGB fan at the rear, enabling easy management of lighting effects through the LED light switch button or your ARGB-compatible motherboard.

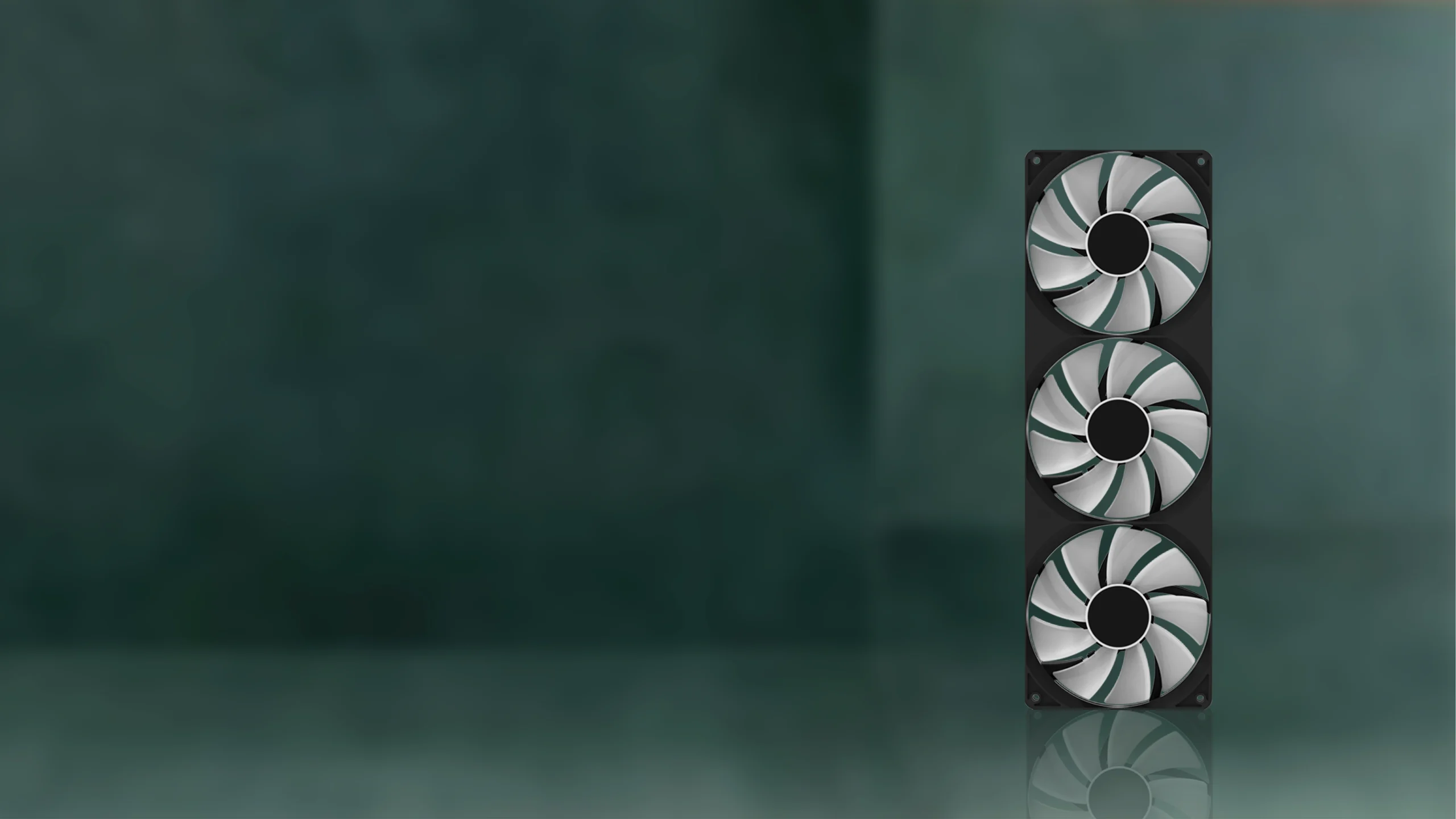

REVERSE 3 in 1 ARGB FAN
Incorporating 3 in 1 120mm ARGB with reversed blades on the side enhances air intake within the interior case, resulting in superior airflow and an overall improved ventilation system.
TEMPERED GLASS SIDE PANEL
Featuring tool-less, tempered glass side panels, this design
enables effortless access. Simply open, remove, and
reassemble the panel with ease—no tools required,
just your hands.
EASY MAINTENANCE
It is equipped with the magnetic dust filters on the top of case. It would be simply, easy, and convenient maintenance.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | i610 Chrome |
| PRODUCT NO. | i610CBF (Black) / i610CWF (White) |
| DIMENSIONS (mm) | 424(L) x 285(W) x 416(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | Type-C x 1, USB3.0 x 2, HD Audio, Power, LED |
| FAN Support | Top: 120mm x 3 / 140mm x 2 , Rear: 120mm x 1 , Side: 120mm x 3 / 140mm x 2 , PSU Chamber: 120mm x 3 / 140mm x 2 |
| PREINSTALLED FAN (s) | ARGB LED Fan One-Piece 360mm (Side) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR Support | Top: 240/280/360mm , Side: 240/280/360mm , Rear: 120mm , Bottom: 240/280/360mm |
| MAX. GPU LENGTH | 400mm |
| MAX.CPU COOLER HEIGHT | 175mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Side Mounted ) |
FRAMELESS DUAL-CHAMBER CRYSTAL DESIGN WITH MIRROR-FINISH ELEGANCE
The frameless dual-chamber crystal design combines cutting-edge aesthetics with functional elegance. Its sleek, mirror-finish exterior not only enhances the visual appeal but also maximizes internal airflow for optimized cooling. This layout ensures a seamless balance between performance and style, making it perfect for users seeking both beauty and efficiency in their setup.
SUPPORTS BACK-CONNECT DESIGN MOTHERBOARD
The Back-Connect Design motherboard revolutionizes efficiency, offering enhanced cable management and optimized airflow. By minimizing clutter, this innovative layout simplifies assembly while delivering a clean and stylish build. It seamlessly combines aesthetics with functionality, ensuring both practical performance and a polished, modern look.
LIGHTING EFFECTS
includes a One-Piece 360mm ARGB reverse fan on the side and a 120mm ARGB fan at the rear, enabling easy management of lighting effects through the LED light switch button or your ARGB-compatible motherboard.
REVERSE 3 in 1 ARGB FAN
Incorporating 3 in 1 120mm ARGB with reversed blades on the side enhances air intake within the interior case, resulting in superior airflow and an overall improved ventilation system.
TEMPERED GLASS SIDE PANEL
Featuring tool-less, tempered glass side panels, this design enables effortless access. Simply open, remove, and reassemble the panel with ease—no tools required, just your hands.
EASY MAINTENANCE
It is equipped with the magnetic dust filters on the top of case. It would be simply, easy, and convenient maintenance.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | i610 Chrome |
| PRODUCT NO. | i610CBF (Black) / i610CWF (White) |
| DIMENSIONS (mm) | 424(L) x 285(W) x 416(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | Type-C, USB3.0 x 2, HD Audio, Power, LED |
| FAN Support | Top: 120mm x 3 / 140mm x 2 , Rear: 120mm x 1 , Side: 120mm x 3 / 140mm x 2 , PSU Chamber: 120mm x 3 / 140mm x 2 |
| PREINSTALLED FAN (s) | ARGB LED Fan One-Piece 360mm (Side) / ARGB LED Fan 120mm x 1 (rear) |
| RADIATOR Support | Top: 240/280/360mm , Side: 240/280/360mm , Rear: 120mm , Bottom: 240/280/360mm |
| MAX. GPU LENGTH | 400mm |
| MAX.CPU COOLER HEIGHT | 175mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Side Mounted ) |
