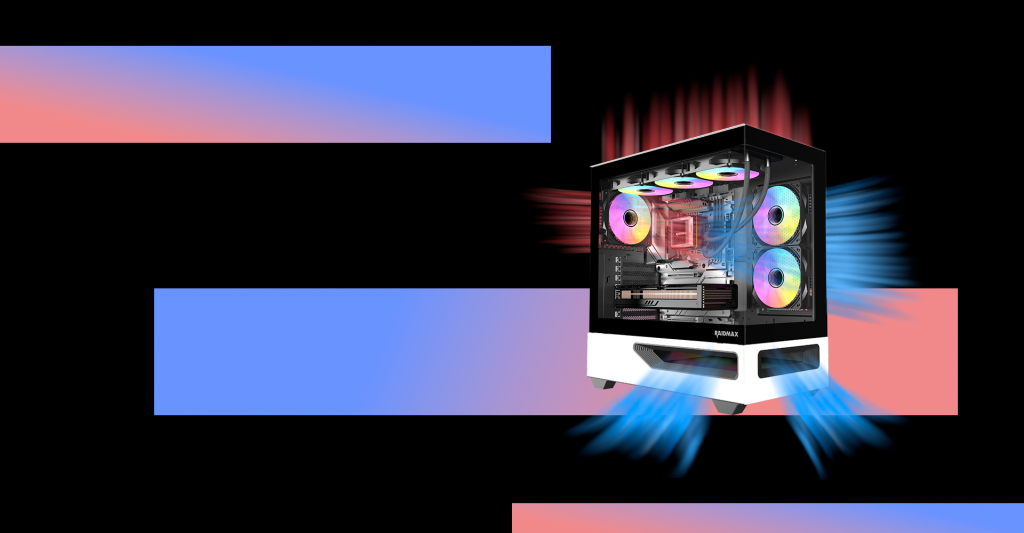

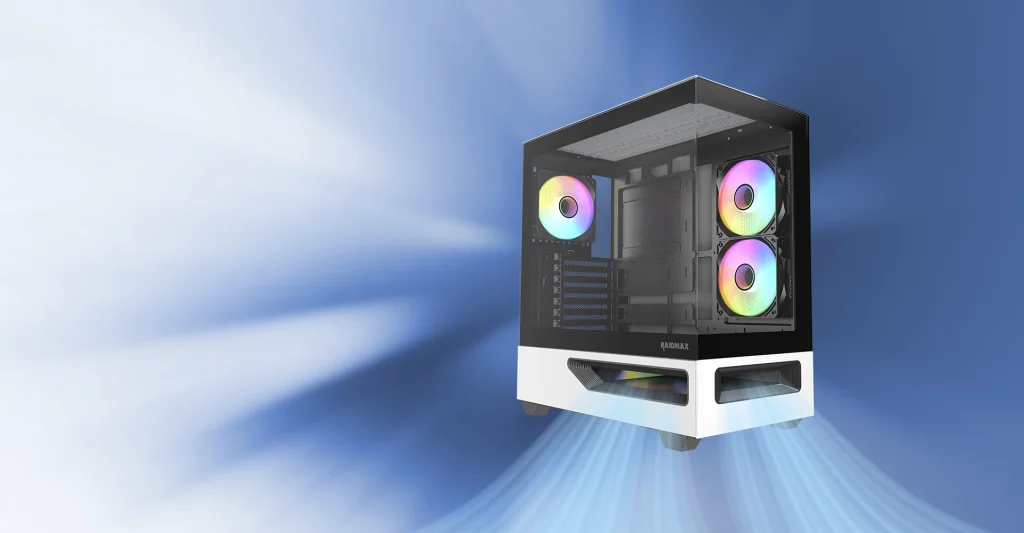

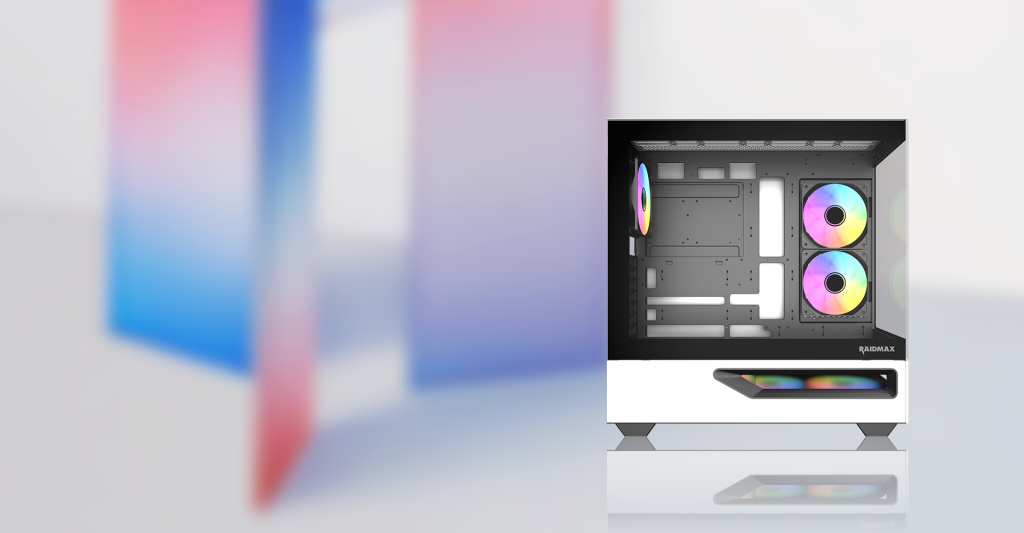

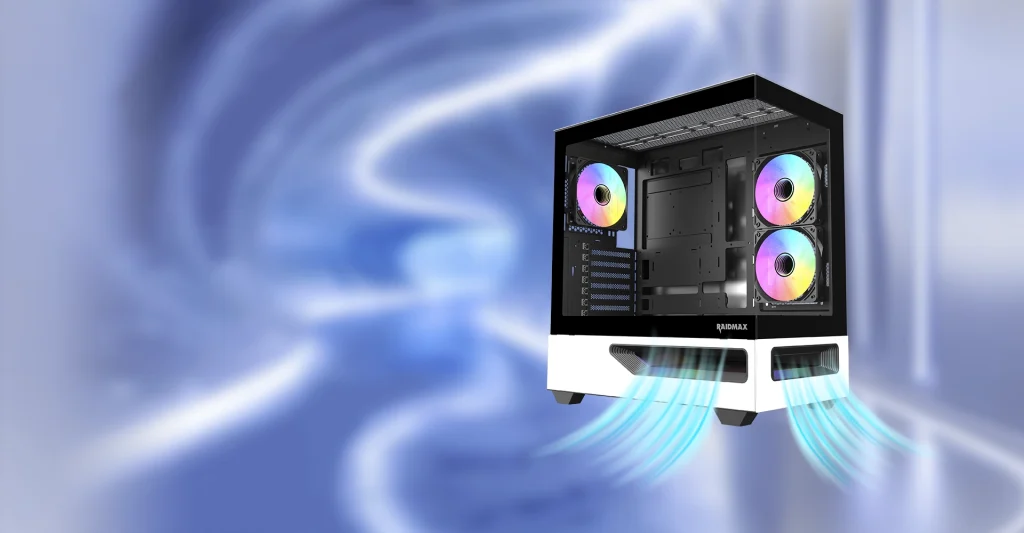

Air Tunnel Chamber
The distinctive cutout on the PSU shroud creates a “AIR TUNNEL” effect, enhancing airflow intake from the bottom and boosting overall cooling performance. This design not only improves functionality but also adds a bold aesthetic touch with visible RGB lighting.

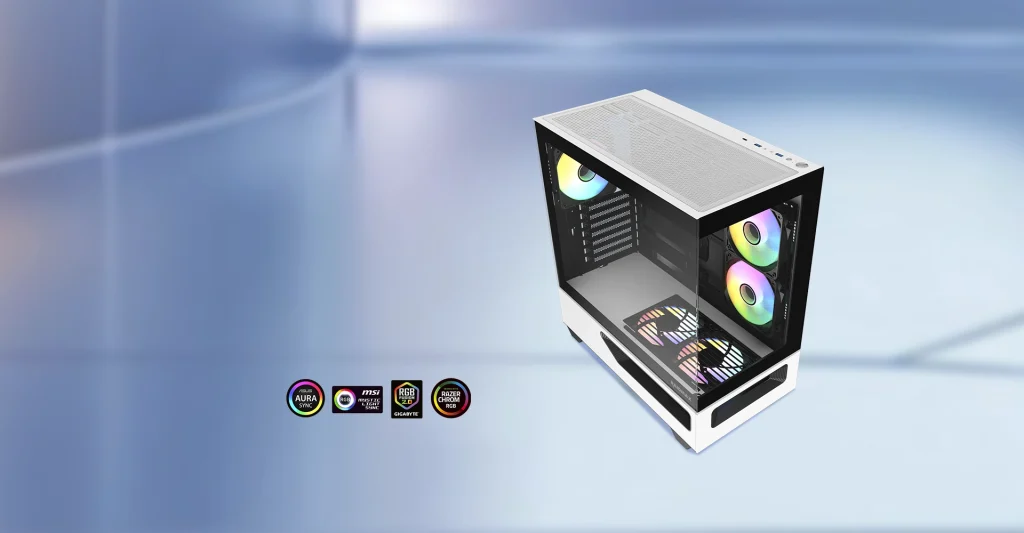

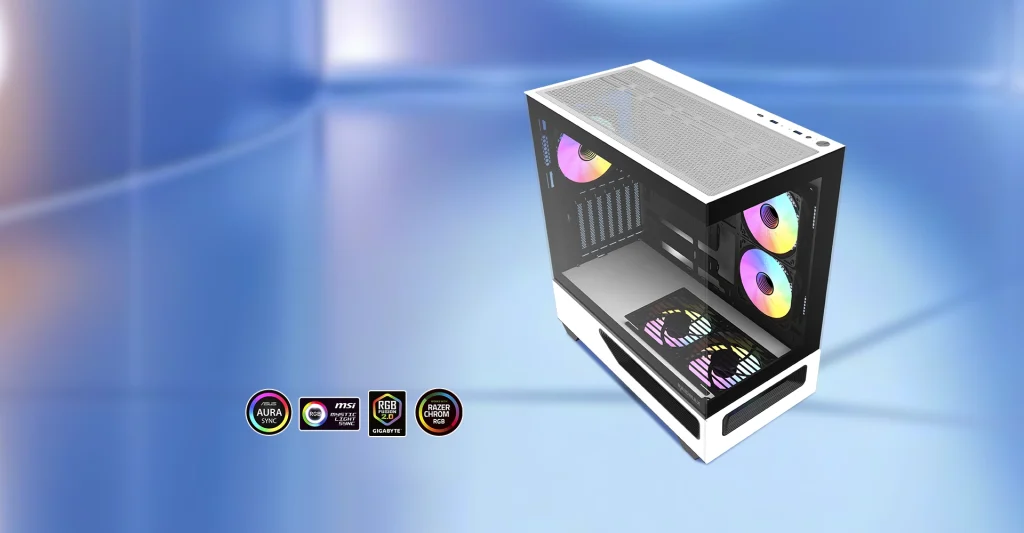

ARGB PWM Fans Pre-installed
Five pre-installed 120mm ARGB PWM fans—two reverse side fans for intake, two bottom fans for upward airflow, and one rear exhaust fan—delivering optimized cooling and vibrant lighting.
It also includes a 6-port ARGB and 4-pin PWM control hub, allowing easy lighting control via the built-in LED button or synchronization with a 5V 3-pin ARGB motherboard. This setup ensures a dynamic, customizable experience straight out of the box.
Tempered Glass Side Panel
Equipped with a tool-less snap-in side panel made of 4mm tempered glass, providing quick and convenient access to the interior. The panel can be effortlessly opened, removed, or reassembled using only your fingers.

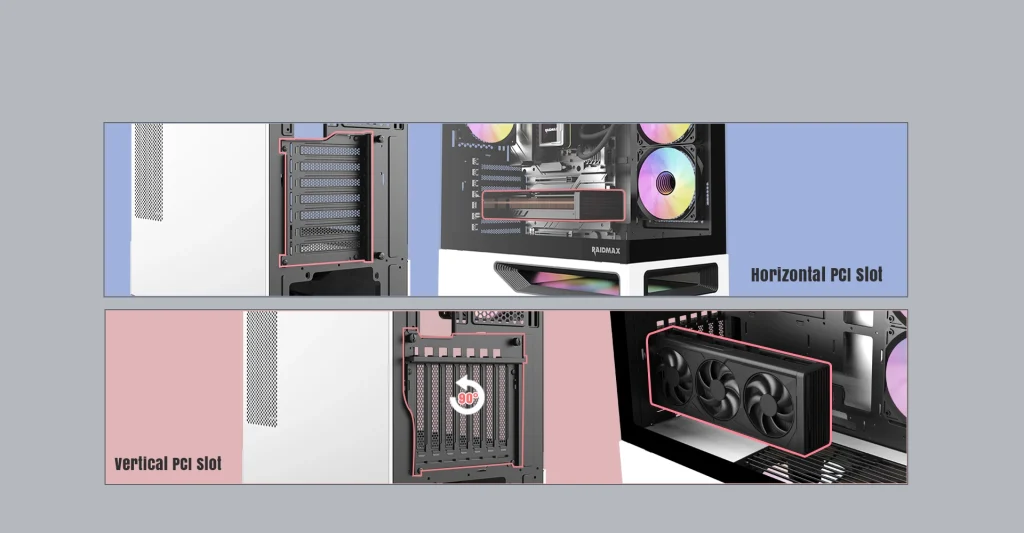

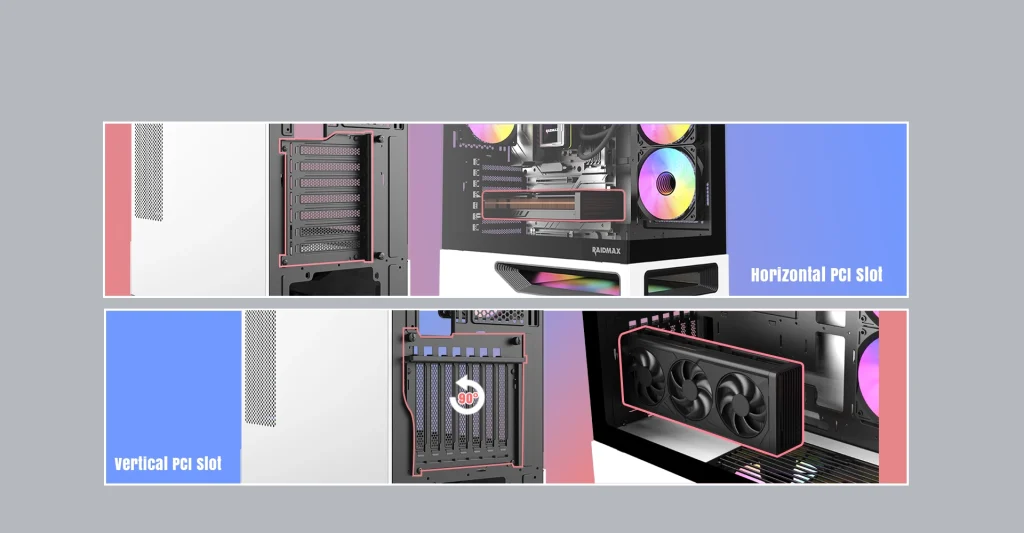

Dual Orientation PCIe Slots
Supports both vertical and horizontal GPU installation, giving you the flexibility to showcase your graphics card your way.
*Optional vertical GPU installation is supported with a riser cable (not included).

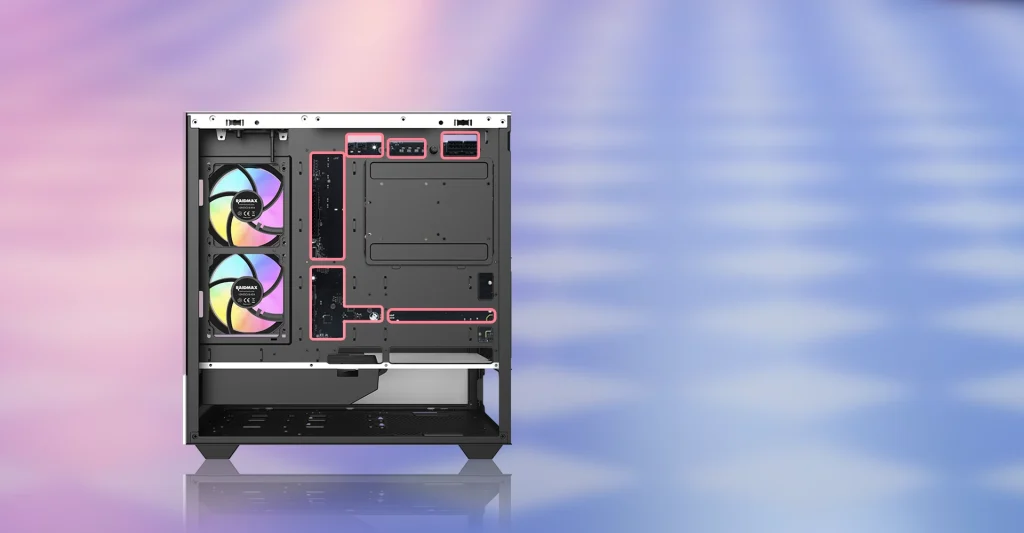

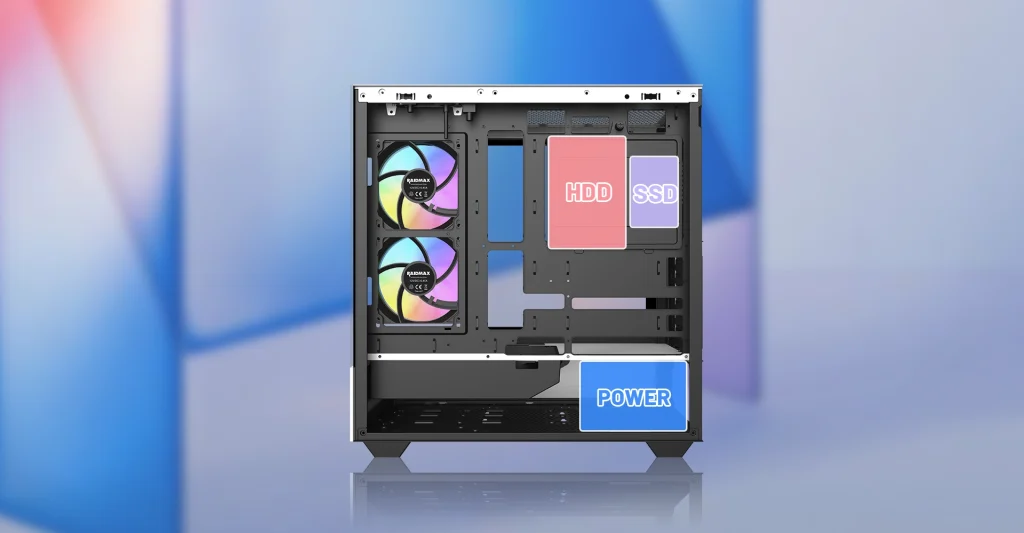

Back-Connect Motherboards Support
Supports next-generation back-connect motherboards, allowing cable connections at the rear to maintain a cleaner and more minimalist interior layout.

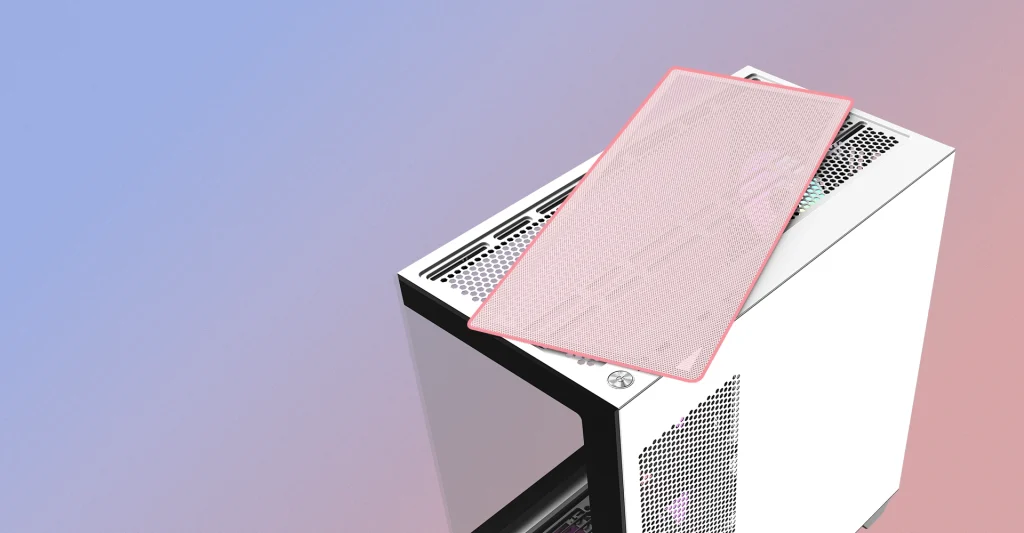

Easy Maintenance
Equipped with magnetic top-mounted dust filters for easy and convenient maintenance.

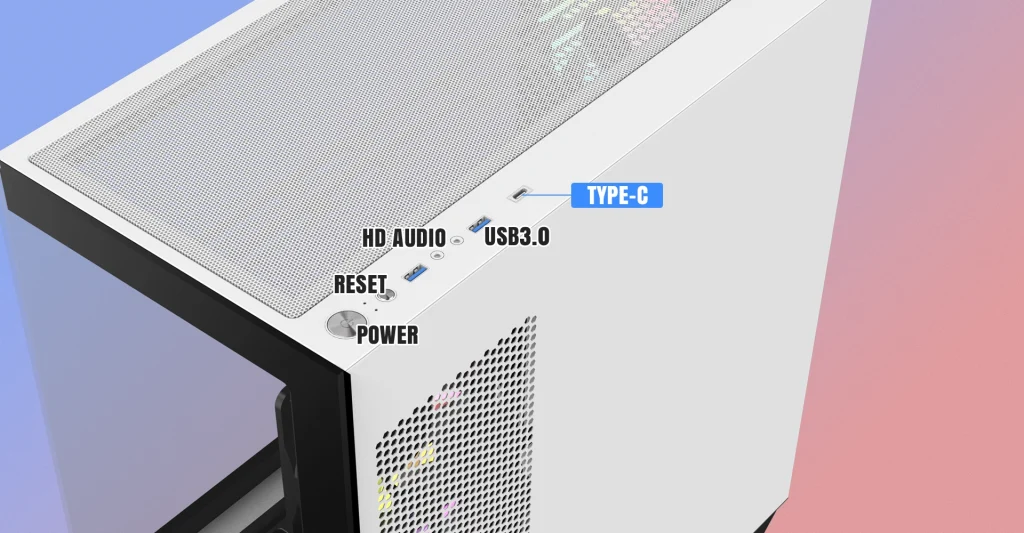

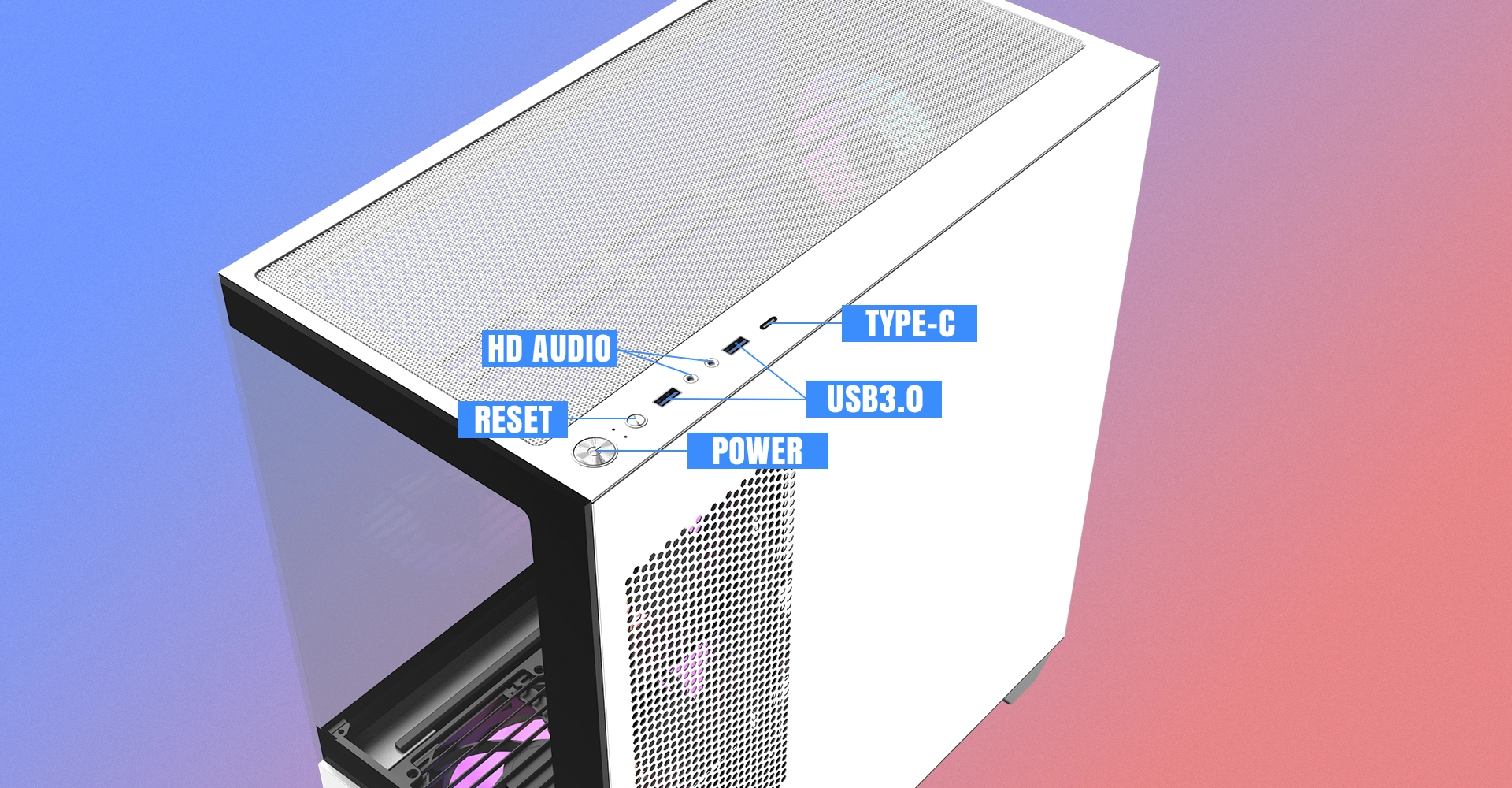

I/O Panel

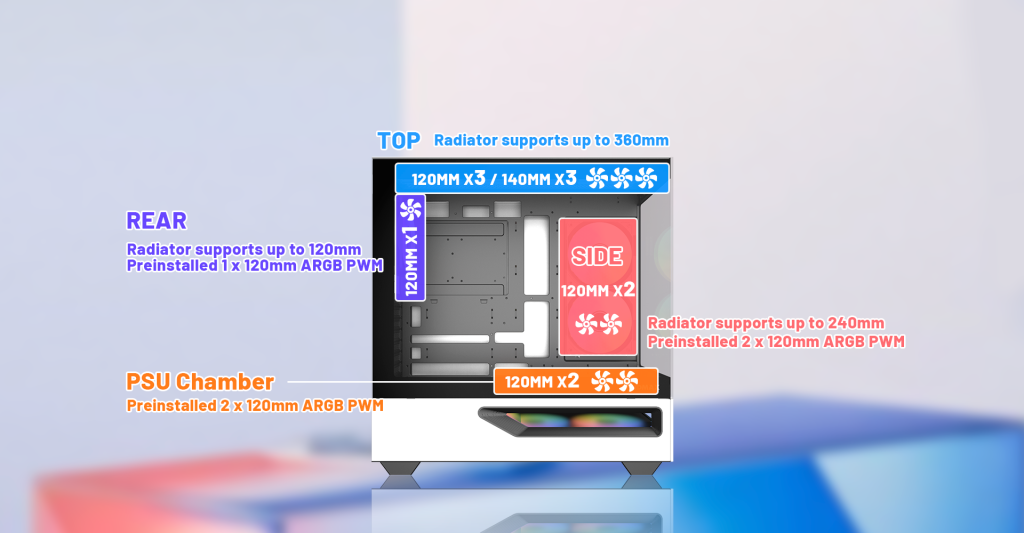

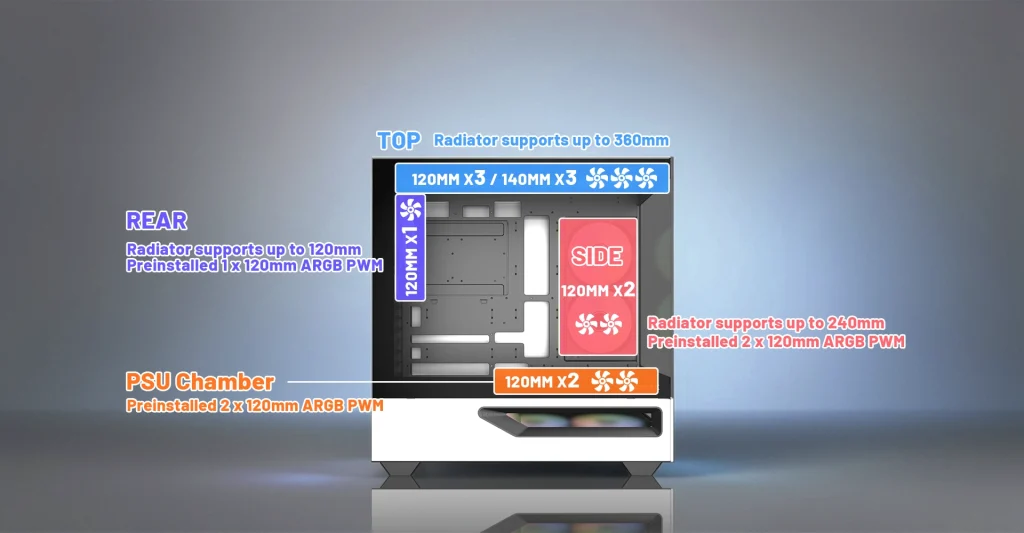

COOLING SYSTEM

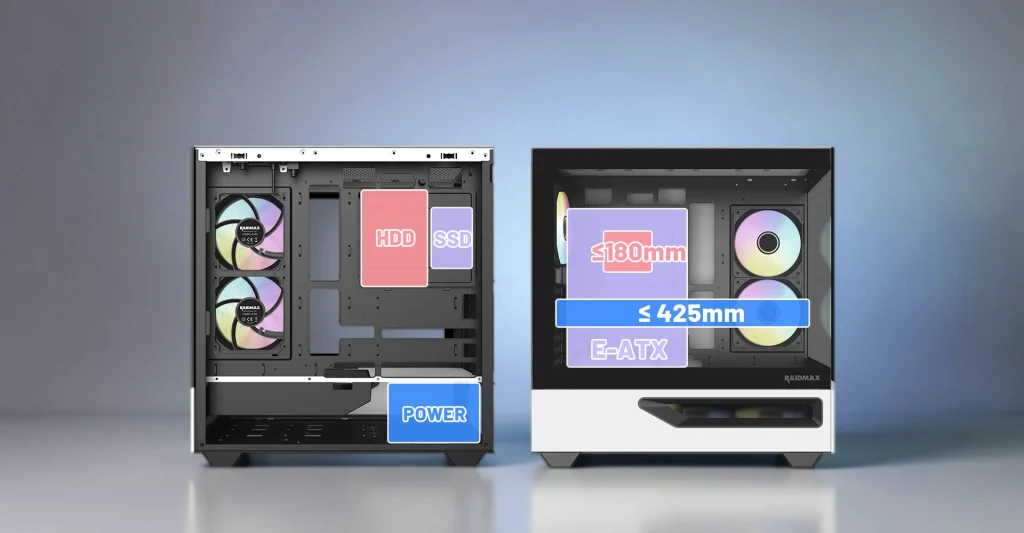

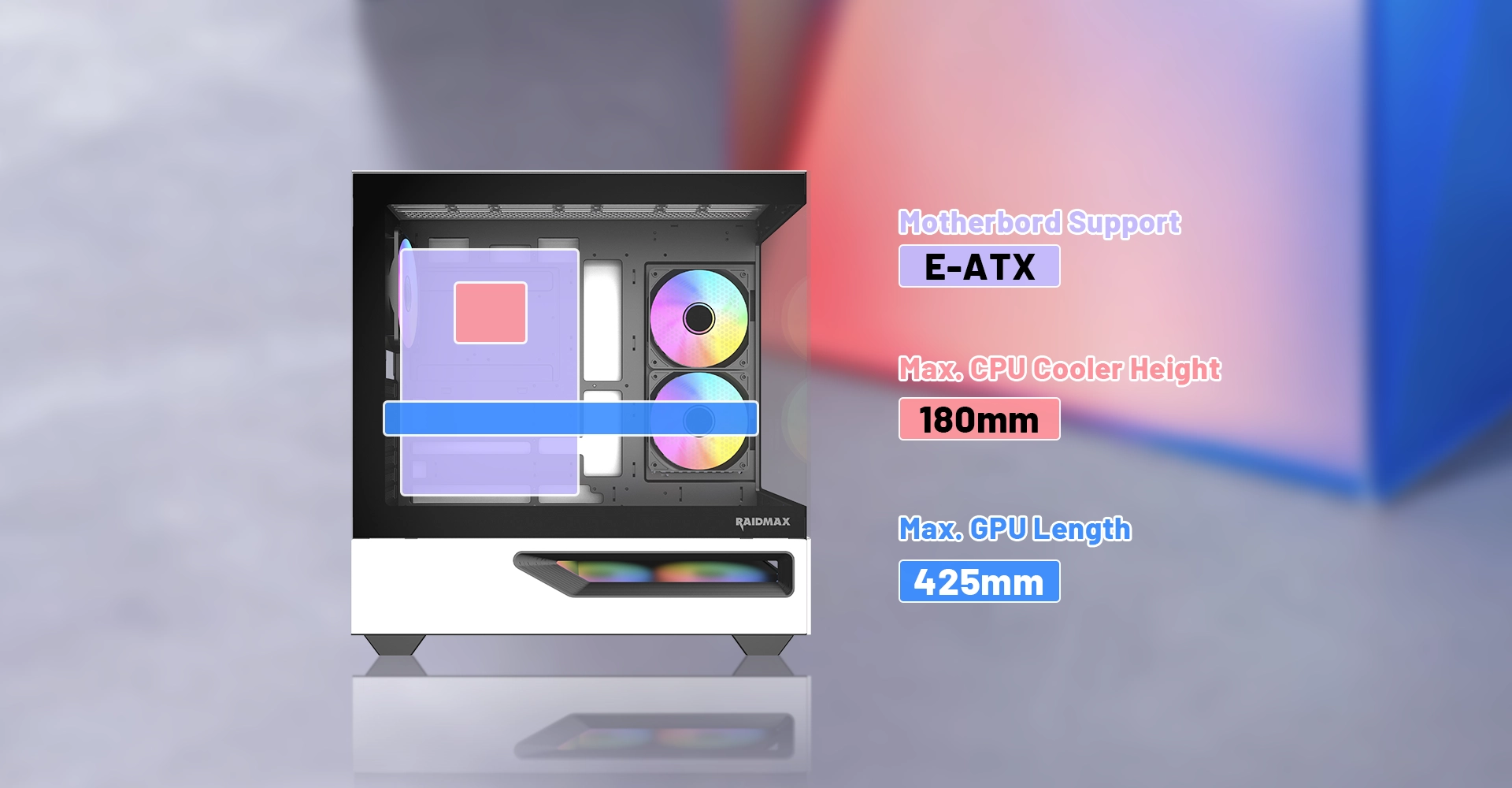

Compatibility & Clearances

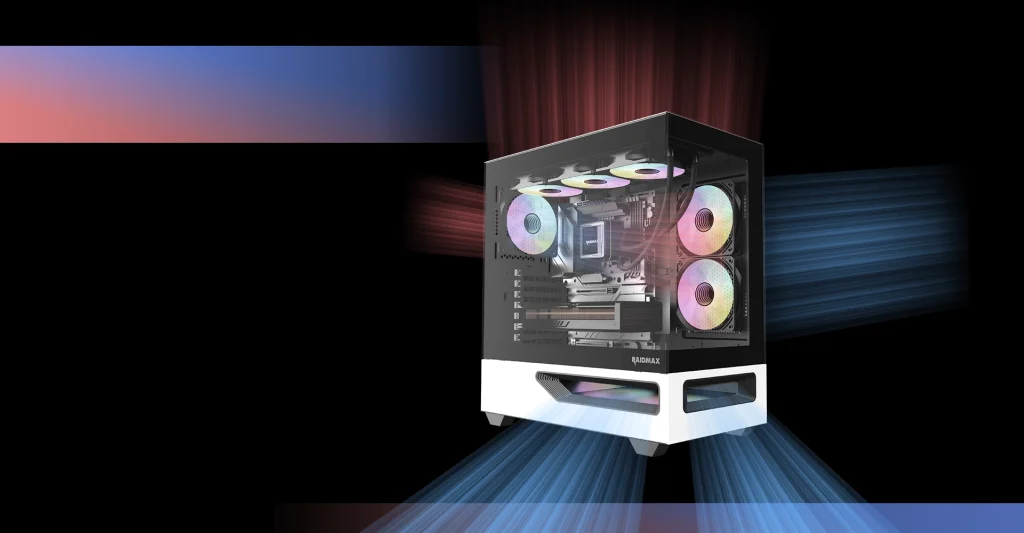

Airflow Diagram
SPECIFICATIONS
| PRODUCT NAME | H200 |
| PRODUCT NO. | H200ZA |
| DIMENSIONS (mm) | 444(L) x 238(W) x 468(H) |
| MOTHERBOARD SUPPORT | E-ATX / ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 1 |
| I/O Ports | Type-C x 1, USB3.0 x 2, HD Audio, Power Button, LED Button |
| FAN Support | Top: 120mm x 3 / 140mm x 3, Side: 120mm x 2, Rear: 120mm x 1, PSU Chamber: 120mm x 2 |
| PREINSTALLED FAN (s) | ARGB LED Fans: 120mm x 2 (Side) / 120mm x 1 (Rear) / 120mm x 2 (PSU Chamber) |
| RADIATOR Support | Top: 240/280/360mm, Side: 240mm, Rear: 120mm |
| MAX. GPU LENGTH | 425mm |
| MAX.CPU COOLER HEIGHT | 180mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( bottom-mounted ) |
