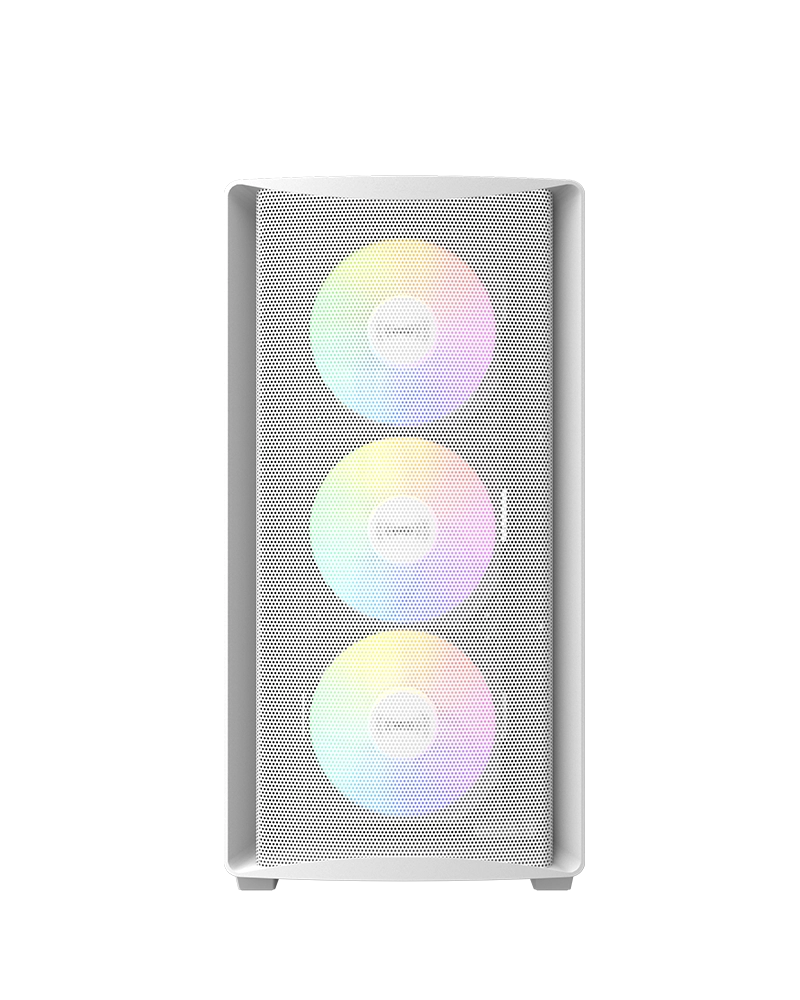

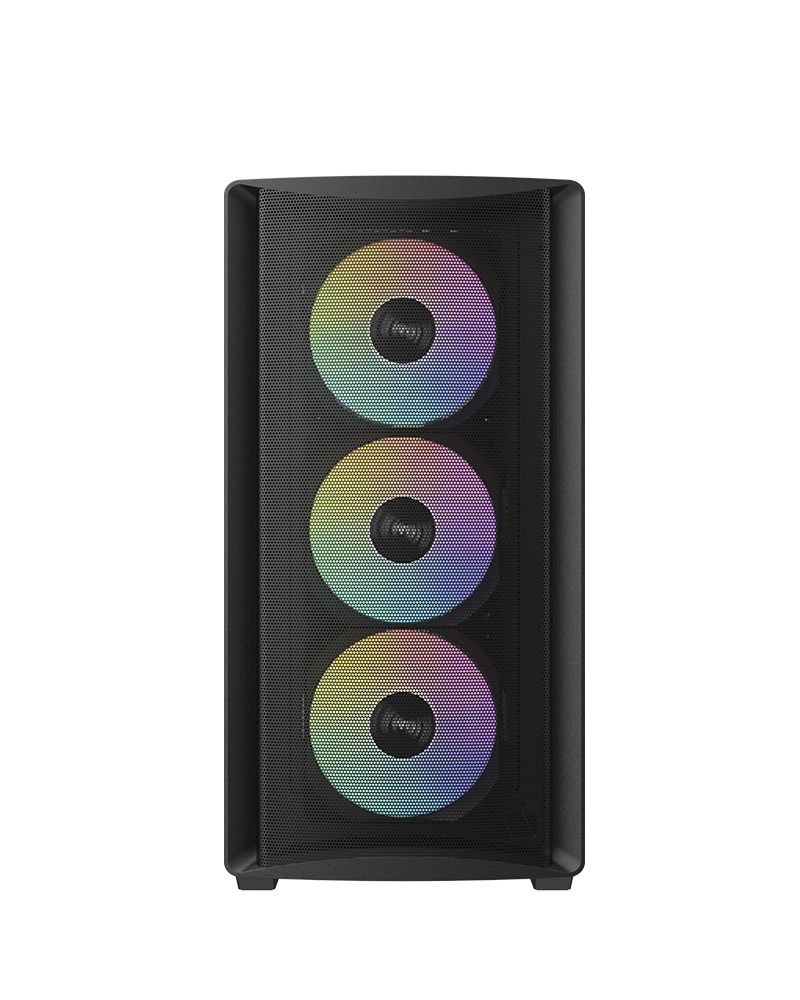

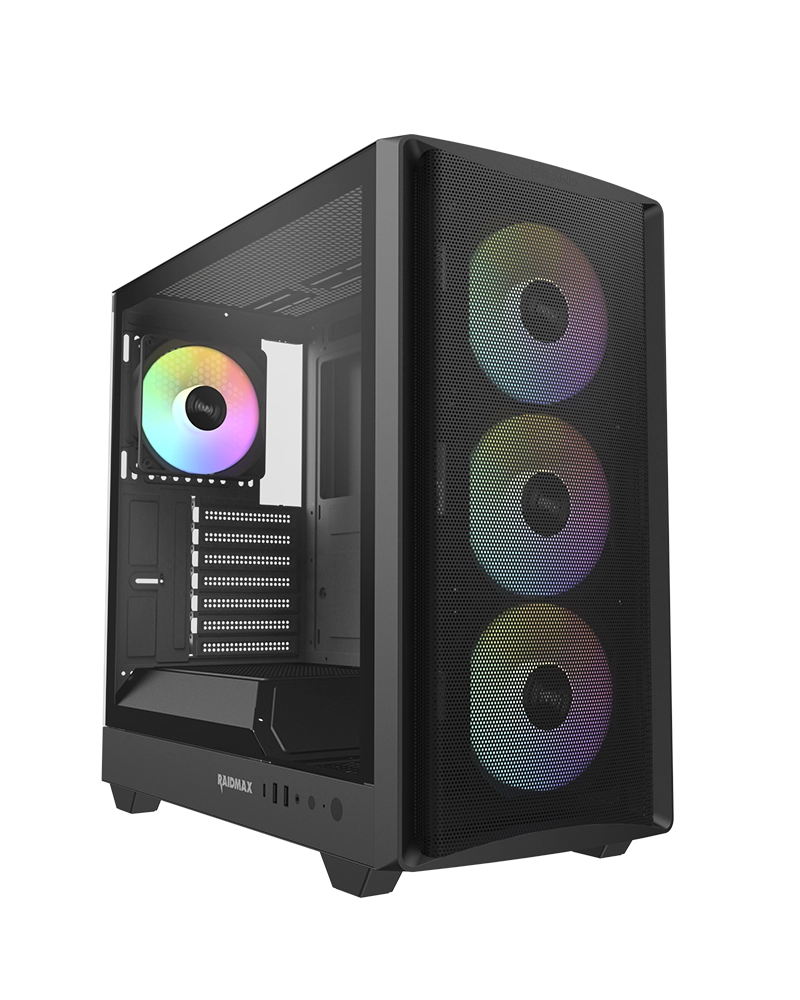

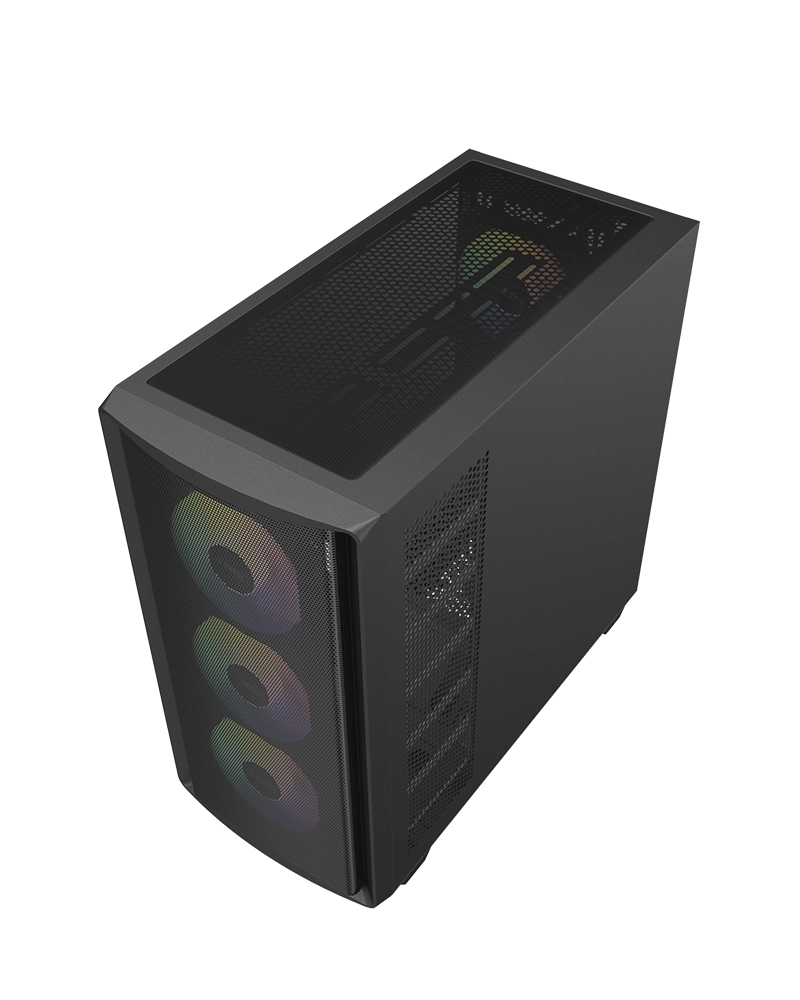

MAX AIRFLOW. MAX GAMING.
Built with a full mesh front panel to keep your rig cool and your performance unstoppable. Show off your build with a sleek design made for next-level gaming.
LIGHT UP YOUR VIBE
Bring your battlestation to life with 3×120mm ARGB fans and a 120mm rear ARGB fan. Create your own gaming atmosphere with dynamic lighting effects, fully customizable through motherboard sync or built-in LED controls.
I/O PANEL
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | A820 |
| PRODUCT NO. | A820BF (Black) / A820WF (White) |
| DIMENSIONS (mm) | 445(L) x 225(W) x 450(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Steel, Tempered Glass, Plastic |
| 3.5"HDD / 2.5"SSD | 1 / 2 |
| I/O Ports | Type-C x 1, USB3.0 x 2 , HD Audio, Power, LED Button |
| FAN Support | Top: 140mm x 2 / 120mm x 3 , Front: 120mm x 3 / 140mm x 2 , Rear: 120mm x 1 , PSU Chamber: 120mm x 1 , Side: 120mm x 3 |
| PREINSTALLED FAN (s) | ARGB LED Fan 120mm x 3 (Front) / ARGB LED Fan 120mm x 1 (Rear) |
| RADIATOR Support | Top: 360mm, Rear: 120mm, Front: 360mm |
| MAX. GPU LENGTH | 410mm |
| MAX.CPU COOLER HEIGHT | 179mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU |
