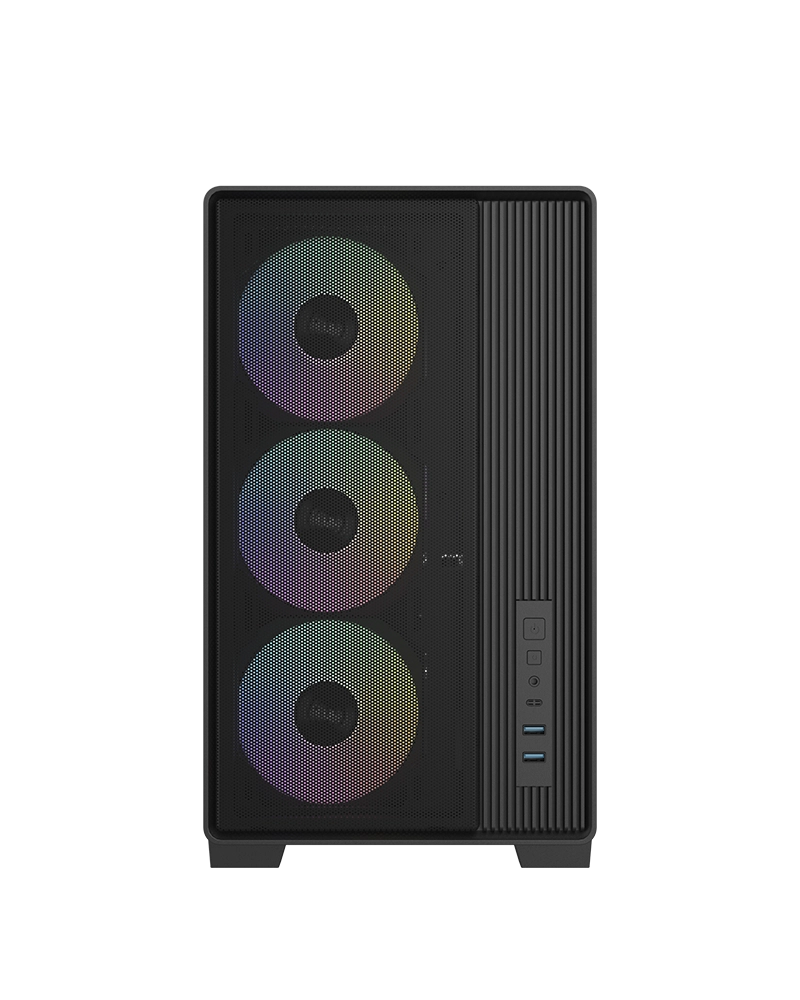

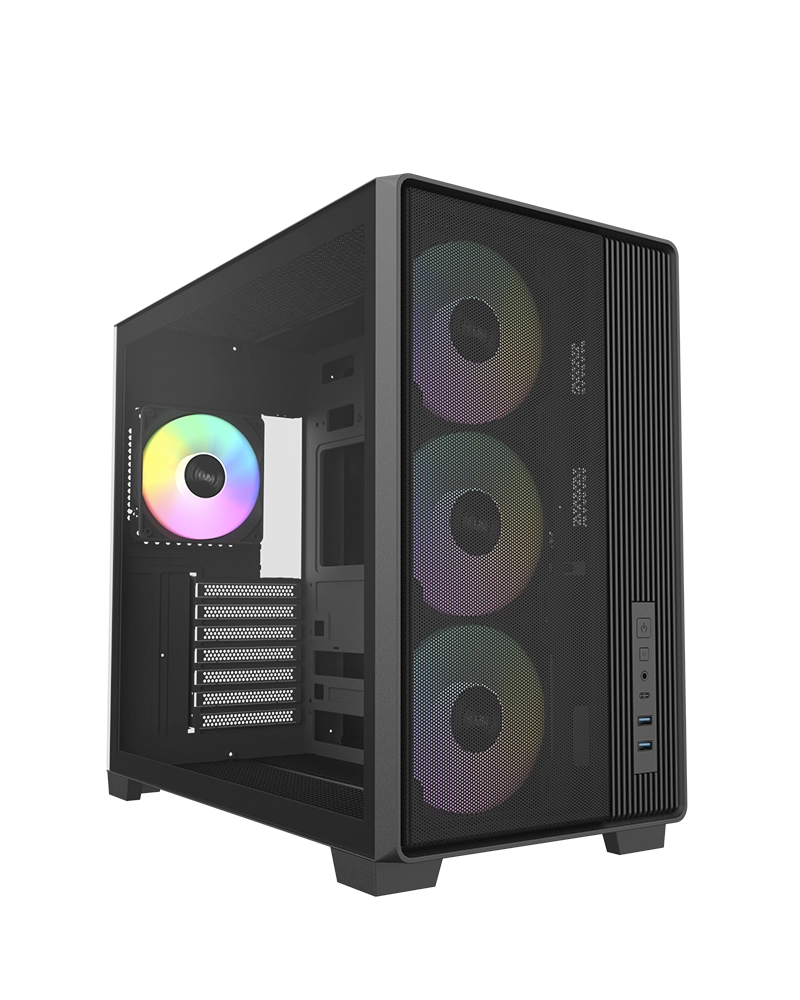

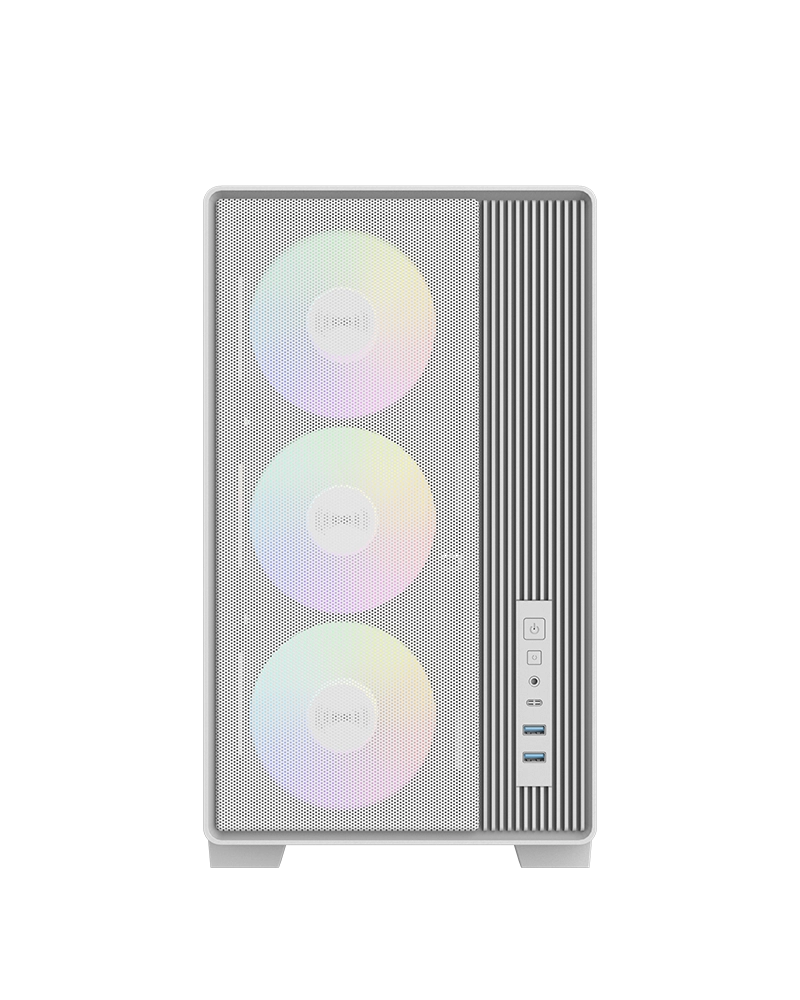

MAXIMUM AIRFLOW DESIGN
A700 features a high-performance mesh front panel designed to maximize airflow and cooling efficiency. It ensures optimal thermal management, protecting your components and extending hardware lifespan.

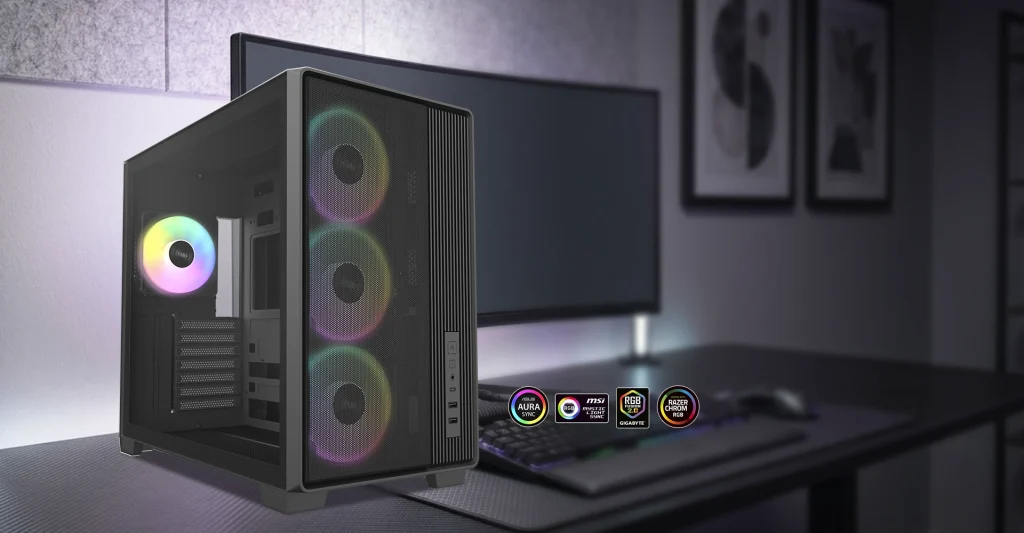

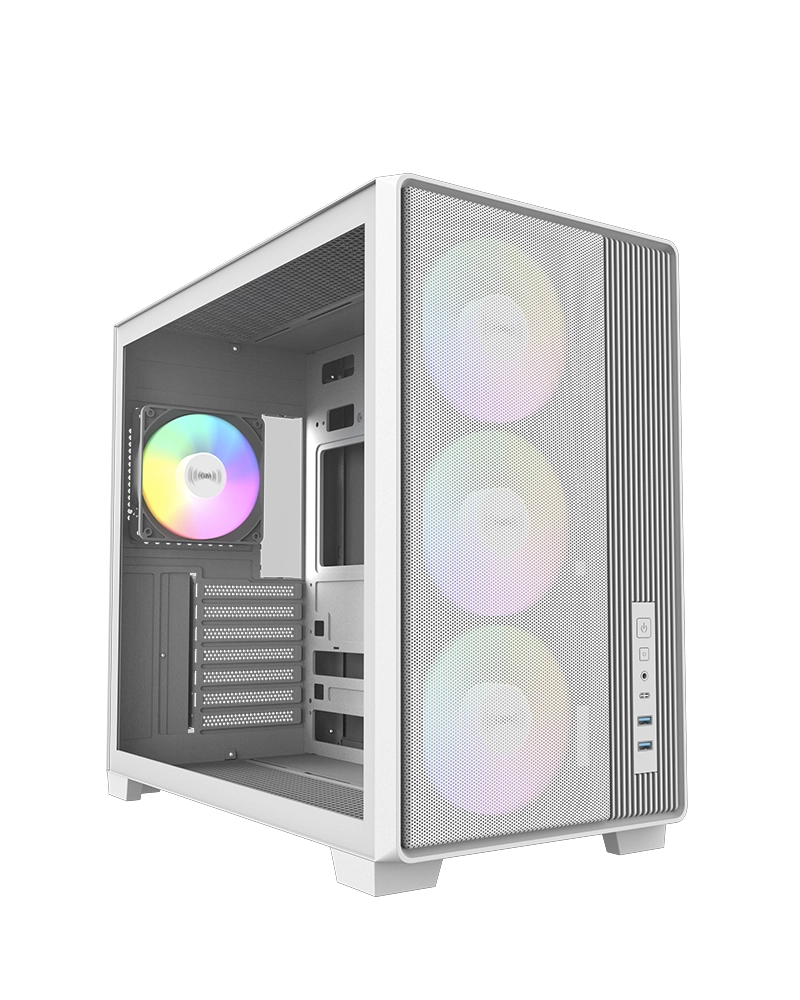

VIBRANT ARGB LIGHTING
Elevate your gaming setup with 4 pre-installed 120mm ARGB fans, delivering vibrant and customizable lighting effects. Positioned at the front and rear, these fans create an immersive illumination that transforms your PC into a striking visual centerpiece

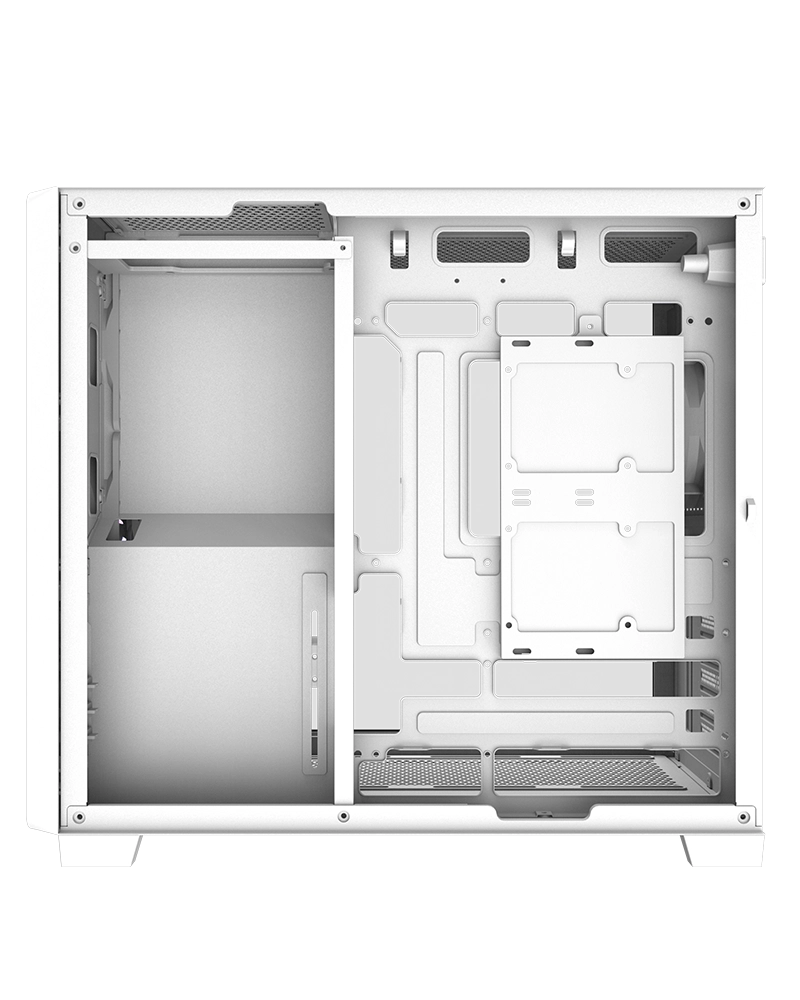

BACK-CONNECT DESIGN
The Back-Connect Design motherboard streamlines cable management, and enhances system aesthetics—making your build cleaner, easier to assemble, and visually stunning.
Built-in GPU Holder
Features a built-in holder to securely support high-performance graphics cards, keeping your system stable and your build looking flawless.

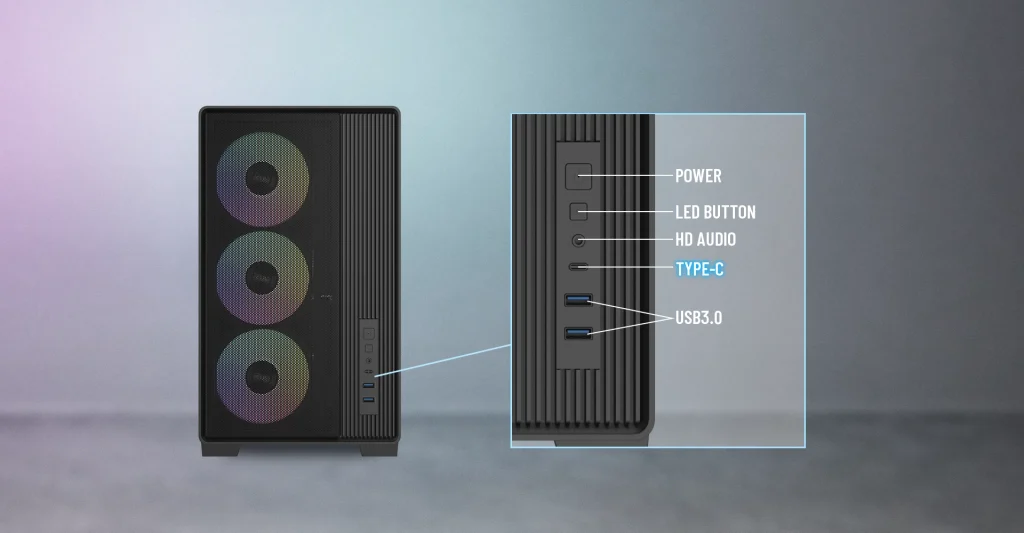

I/O Panel
COOLING SYSTEM

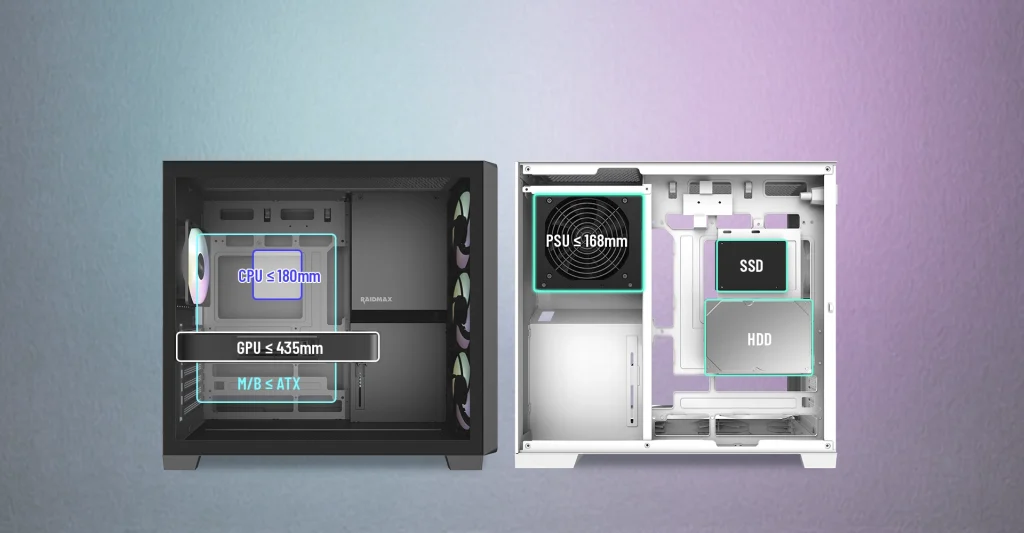

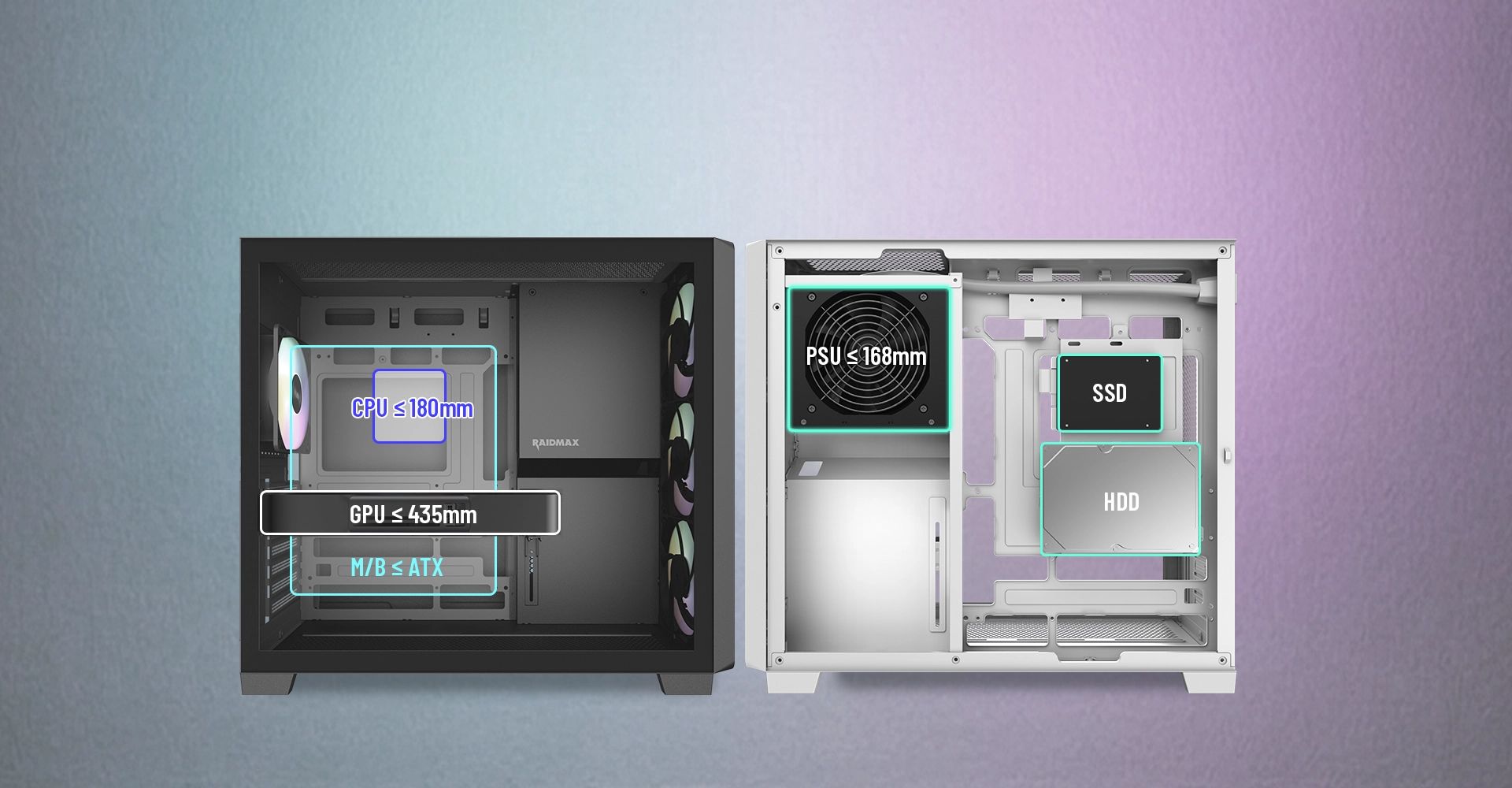

COMPATIBILITY & CLEARANCES

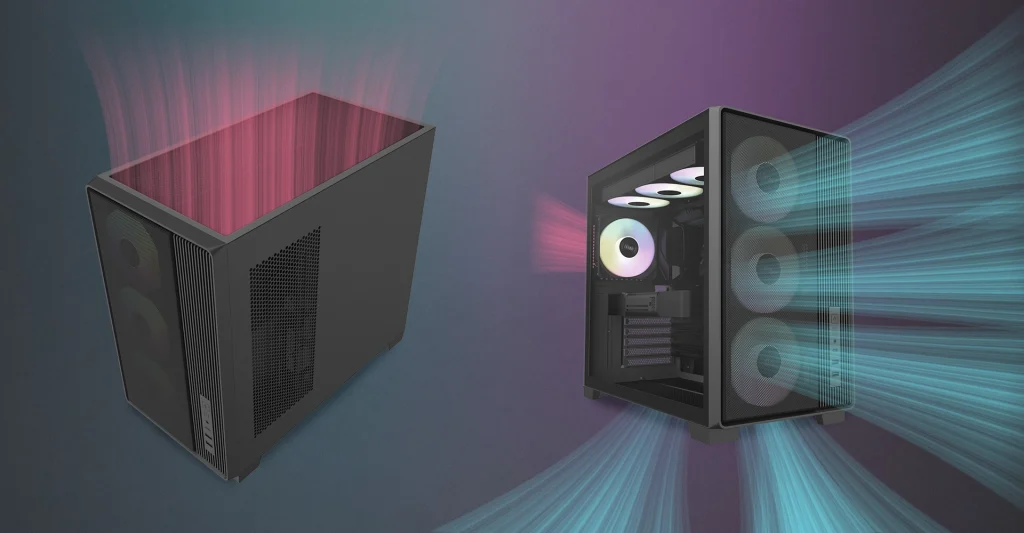

AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | A700 |
| PRODUCT NO. | A700BF (Black) / A700WF (White) |
| DIMENSIONS (mm) | 450(L) x 240(W) x 420(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 1 |
| I/O Ports | Type-C x 1, USB3.0 x 2, HD Audio, Power, LED Button |
| FAN Support | Top: 140mm x 2, 120mm x 3, Front: 120mm x 3, Rear: 120mm x 1, Bottom: 120mm x 3 / 140mm x 2 |
| PREINSTALLED FAN (s) | Front: ARGB 120mm Fan x 3, Rear: ARGB 120mm x 1 |
| RADIATOR Support | Top: 280 / 360mm, Front: 280 / 360mm, Rear: 120mm |
| MAX. GPU LENGTH | 435mm |
| MAX.CPU COOLER HEIGHT | 180mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Front-Mounted ) |

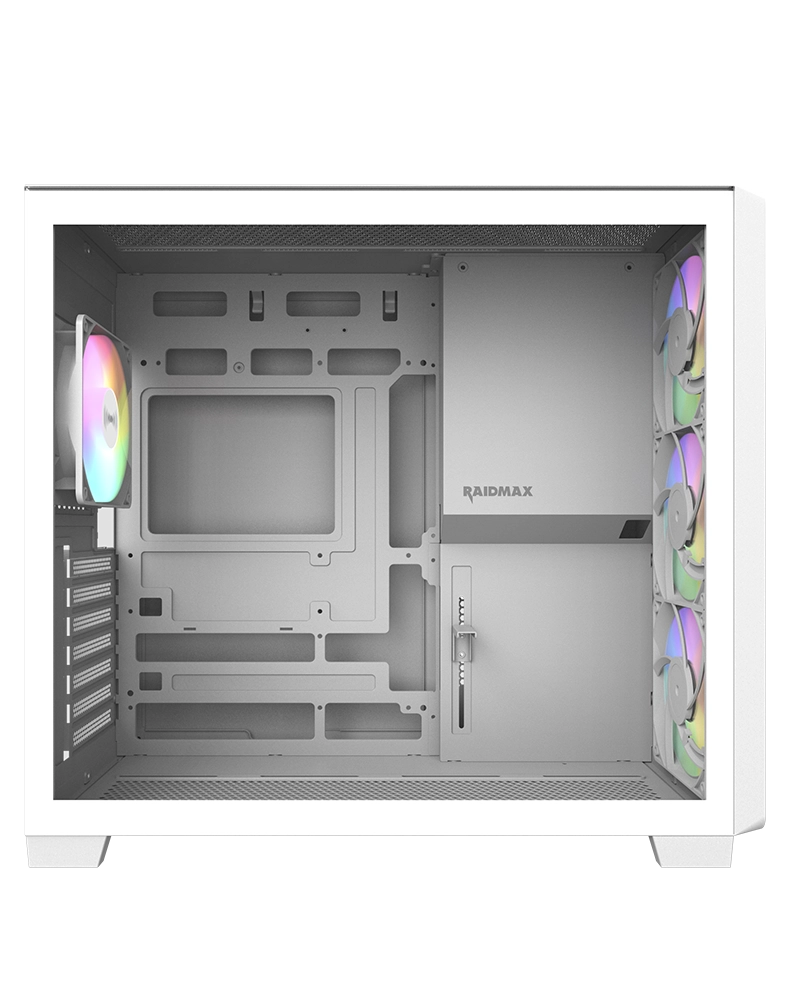

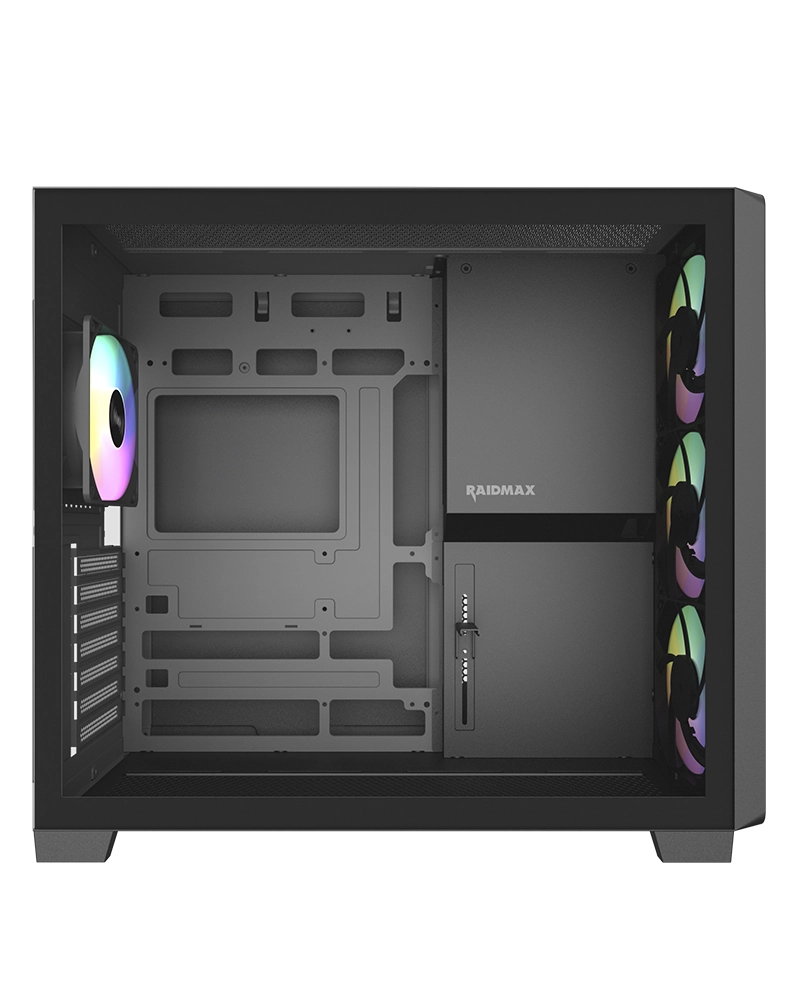

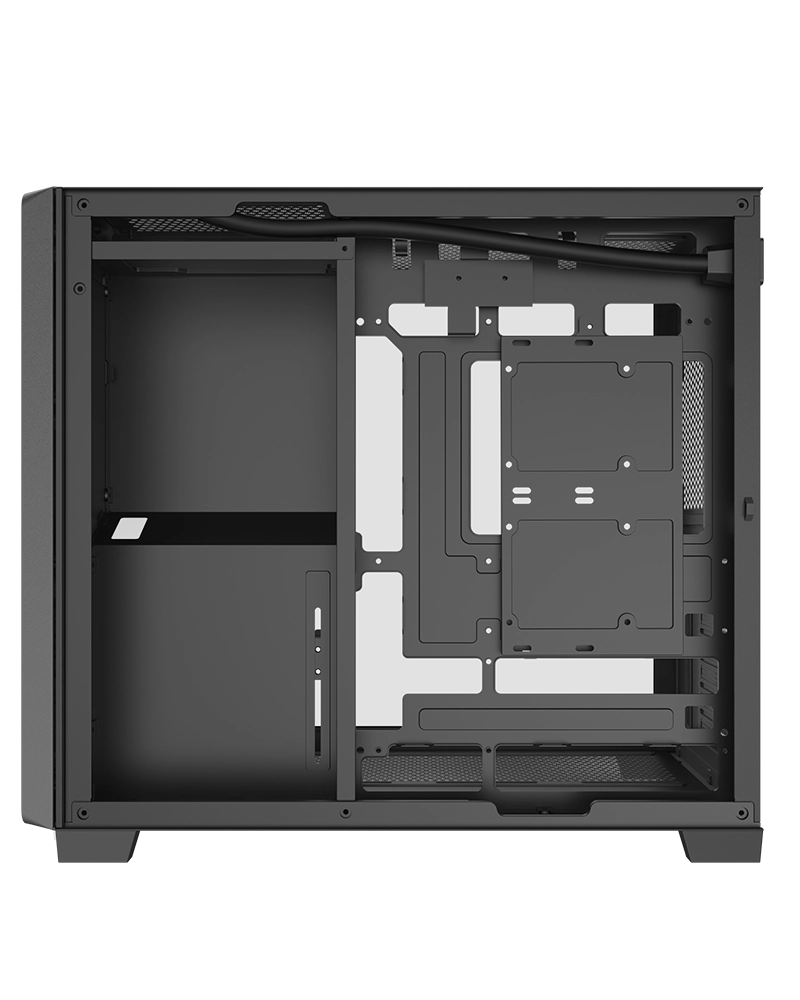

270° Panoramic View with Front-Mounted PSU Design
Featuring edge-to-edge tempered glass, i700 delivers a seamless 270° panoramic view to fully showcase your build and RGB lighting. The front-mounted PSU design frees up internal space, improving airflow while keeping the system clean and well-organized.
Brilliant ARGB Lighting Effects
Equipped with a one-piece 360mm ARGB reverse fan at the bottom and a 120mm ARGB rear fan, i700 delivers immersive and dynamic lighting effects.
Easily synchronize and customize your lighting via your ARGB-compatible motherboard or the built-in LED control button for seamless control.
Supports Back-Connect Design
The Back-Connect Design motherboard streamlines cable management, improves airflow, and enhances system aesthetics—making your build cleaner, easier to assemble, and visually stunning.
Built-in GPU Holder
Features a built-in holder to securely support high-performance graphics cards, keeping your system stable and your build looking flawless.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | A700 |
| PRODUCT NO. | A700BF (Black) / A700WF (White) |
| DIMENSIONS (mm) | 450(L) x 240(W) x 420(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Steel, Tempered Glass |
| 3.5"HDD / 2.5"SSD | 1 / 1 |
| I/O Ports | Type-C x 1, USB3.0 x 2, HD Audio, Power, LED Button |
| FAN Support | Top: 140mm x 2, 120mm x 3, Front: 120mm x 3, Rear: 120mm x 1, Bottom: 120mm x 3 / 140mm x 2 |
| PREINSTALLED FAN (s) | Front: ARGB 120mm Fan x 3, Rear: ARGB 120mm x 1 |
| RADIATOR Support | Top: 280 / 360mm, Front: 280 / 360mm, Rear: 120mm |
| MAX. GPU LENGTH | 435mm |
| MAX.CPU COOLER HEIGHT | 180mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Front-Mounted ) |
